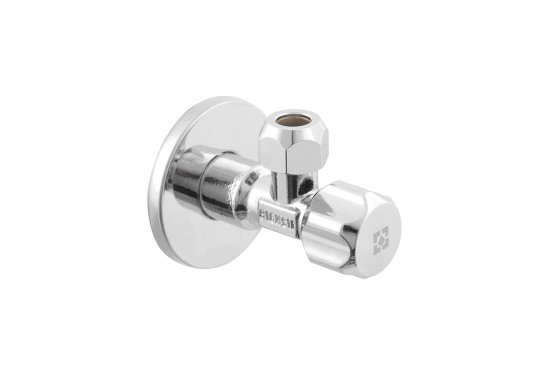

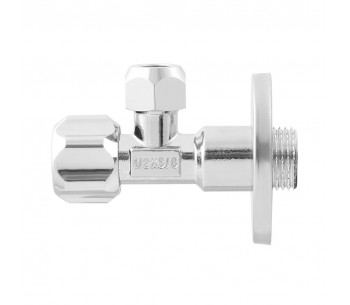

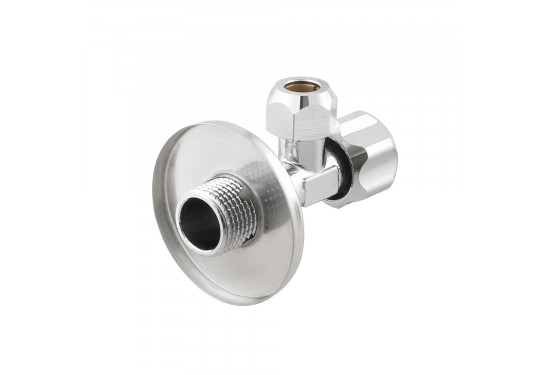

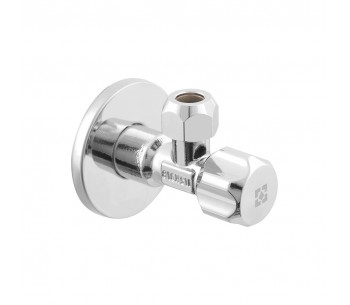

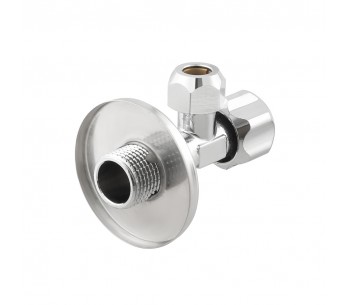

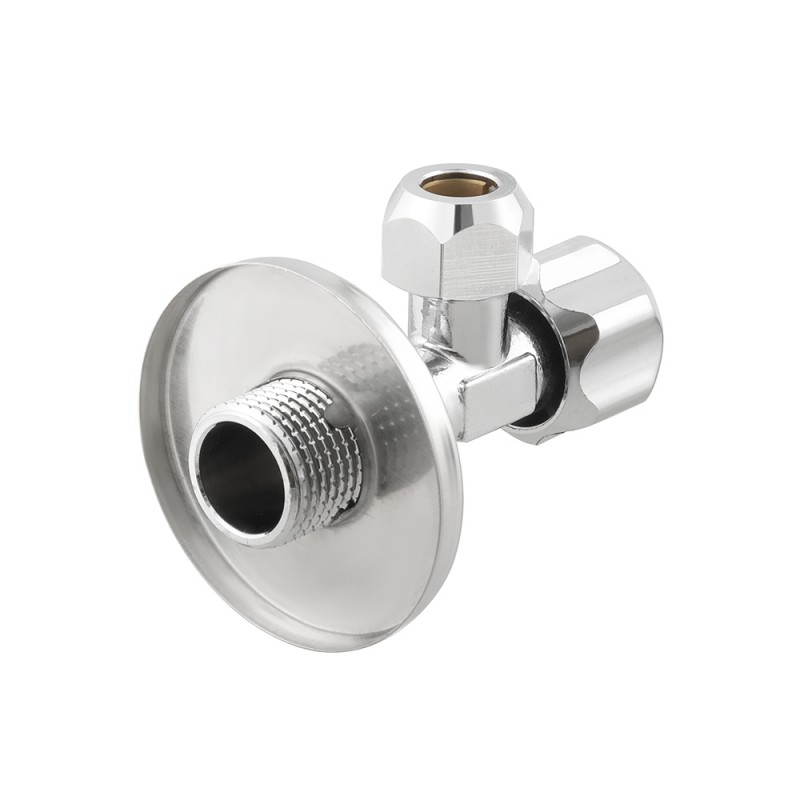

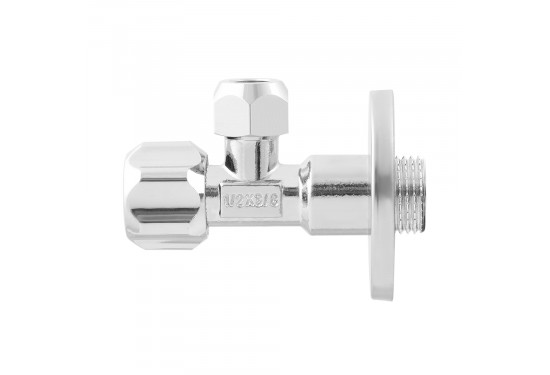

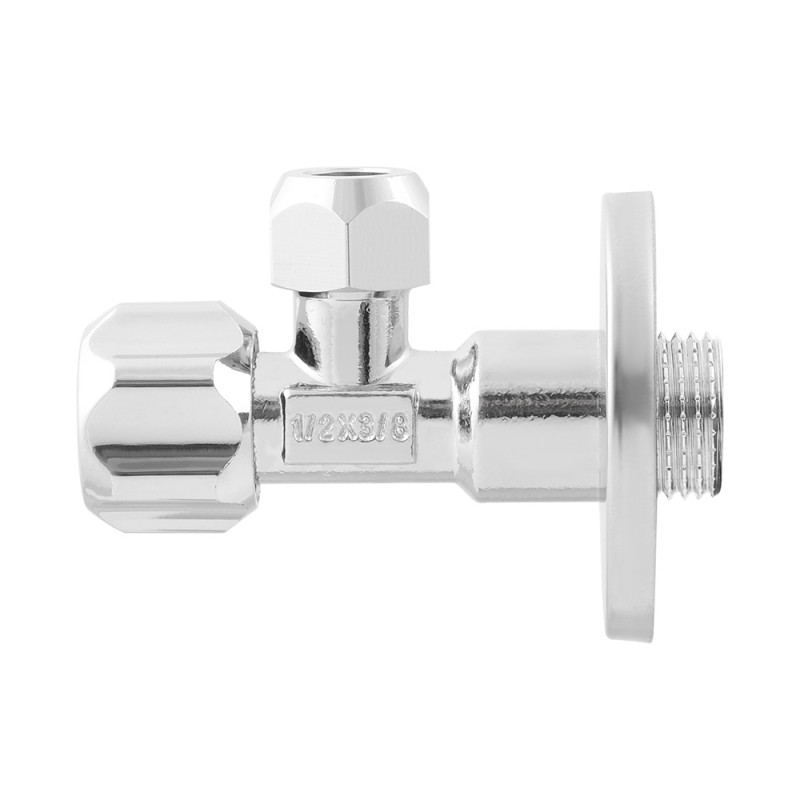

RAFTEC SILVER (1/2"х3/8") Ø10 angle gate valve for connecting household appliances VBE01005
The valve is made of brass by the method of hot forming and covered with chrome. The valve mechanism is made of a brass slider with a seal, which, rotating by the handle, gradually blocks the flow. Pipe cylindrical thread of class “A” is used in ball valves, which meets the standards (ISO228/2. ISO 7/2). Valves are used on pipelines made of different materials. To seal the threaded joints, it is necessary to use - sanitary linen with an anaerobic sealant, polyamide fibre, teflon. It is not allowed to use the valve to transport media aggressive to materials of its elements.
➠
|
|
Description
Raftec gate valve of the Silver series is intended for connection to a water supply network of plumbing appliances with rigid rod connections with a diameter of 10 mm (for an appliance with copper pipes). The nozzle to the mixer is equipped with a nickel-plated brass cap nut. Sealing of the connection is provided by crimping the Teflon sealing ring. The set includes a decorative bowl.
Specifications
➠
| Warranty, Years: | 5 |
| Body material: | Chrome plated brass |
| Operating temperature, °C: | from 0 to 90 |
| Average full service life, years: | 15 |
| Handle type: | Swivel cap |
| Thread: | M-M |
| Thread accuracy class: | "А" (ISO7/2) |
| Notch on thread: | Yes |
| Average service life (opening-closing), times: | 3000 |
| Average time between failures (opening-closing), times: | 3000 |
| Handle material: | Plastic |
| Stammmaterial: | Brass |
| Seal: | EPDM |
| Material of decorative bowl: | Chrome plated brass |
