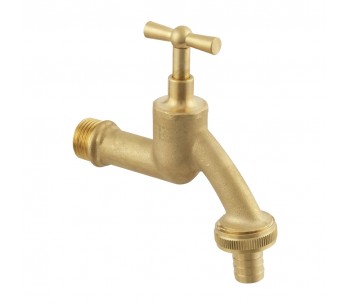

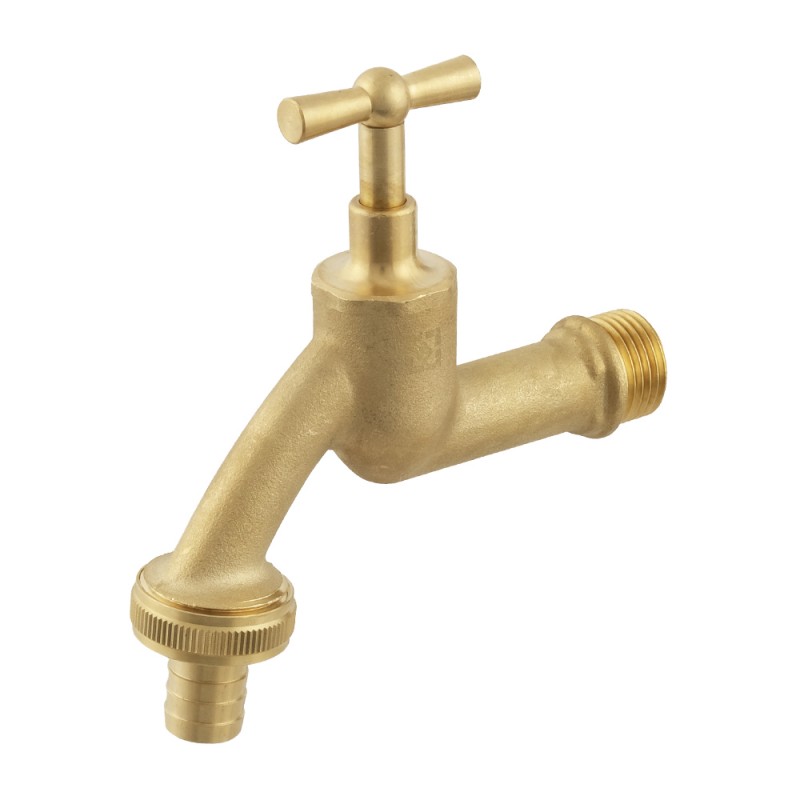

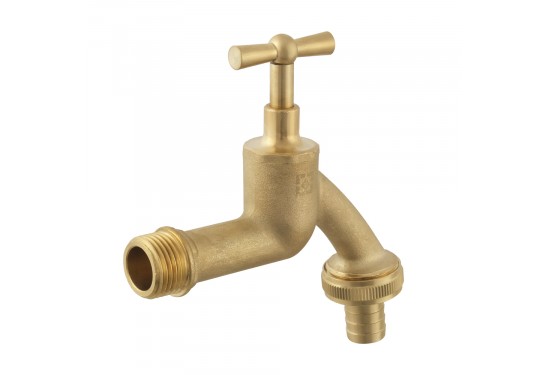

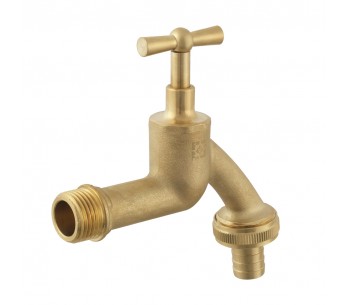

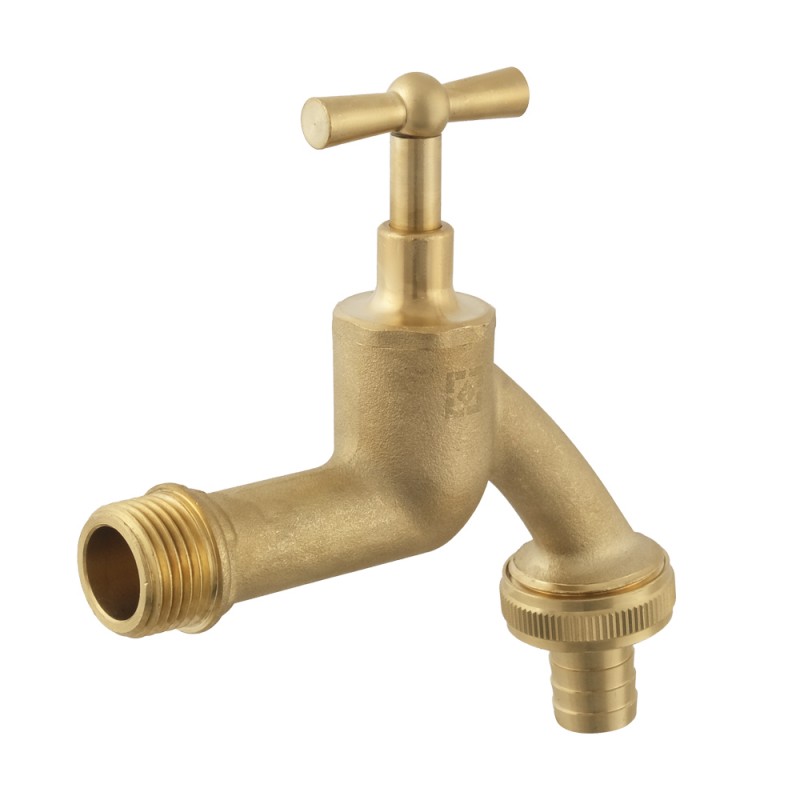

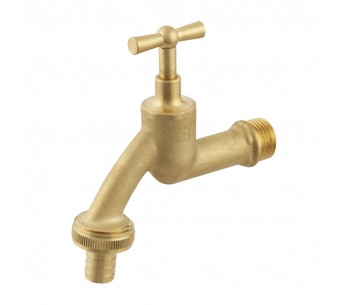

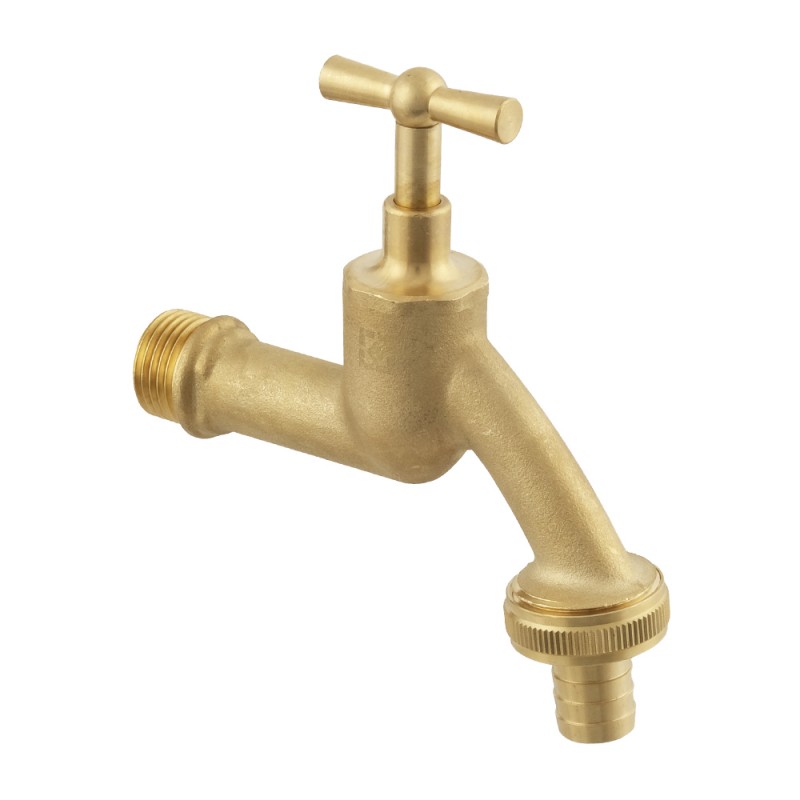

Ball valve for watering RAFTEC GOLD GKP01
The valve is made of hot-stamped brass and is nickel-plated. Ball valves use a class "A" cylindrical pipe thread, which meets the standards (ISO228/2. ISO 7/2). The valves are used on pipelines made of various materials. To seal threaded connections, it is necessary to use - sanitary linen with anaerobic sealant, polyamide thread, fum tape.
➠
|
|
Description
The Raftec Gold Series ball valve is used as a shut-off valve on drinking, domestic, process, cold, and hot water supply systems. The valve features a removable nozzle for connecting a garden hose, and its replaceable nozzle allows for connection to hoses of different diameters. The installed diffuser ensures a compact stream at the outlet.
Specifications
➠
| Warranty, Years: | 10 |
| Body material: | Brass |
| Operating environment temperature, ° C: | 90 |
| Notch on thread: | Yes |
| Average service life (opening-closing), times: | 4000 |
| Average time between failures (opening-closing), times: | 4000 |
| Handle material: | Brass |
| Stammmaterial: | Brass |
| Gland seal: | Teflon, FKM (viton) |
