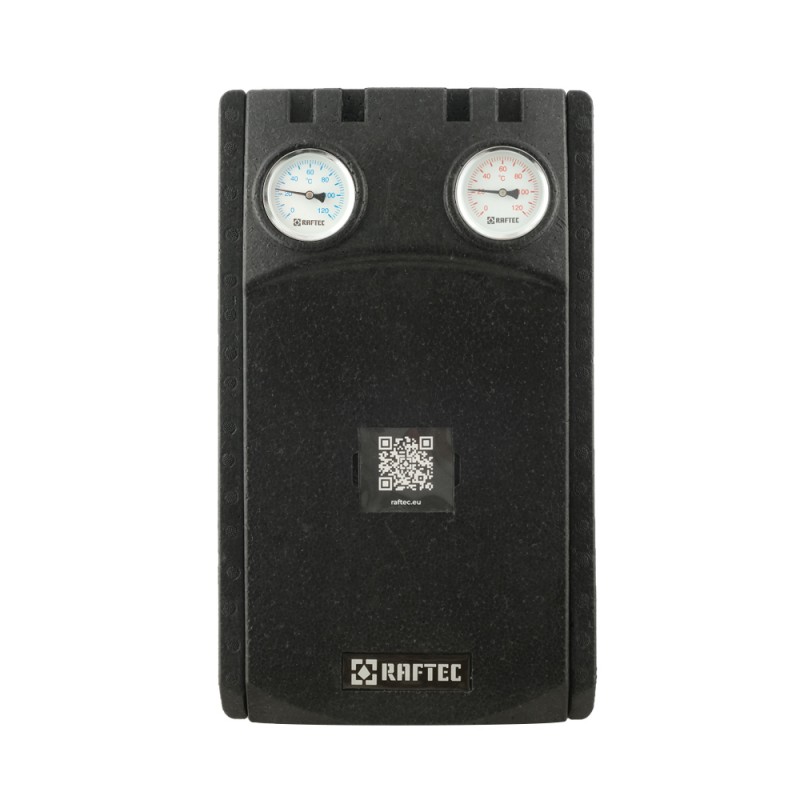

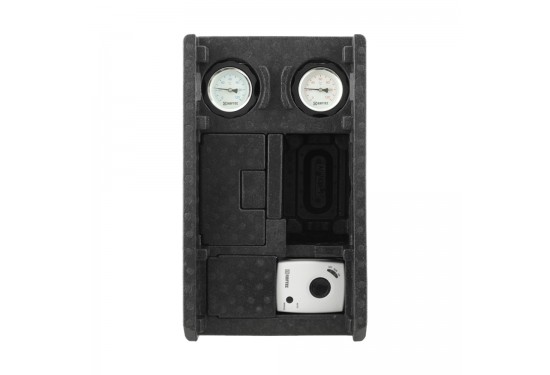

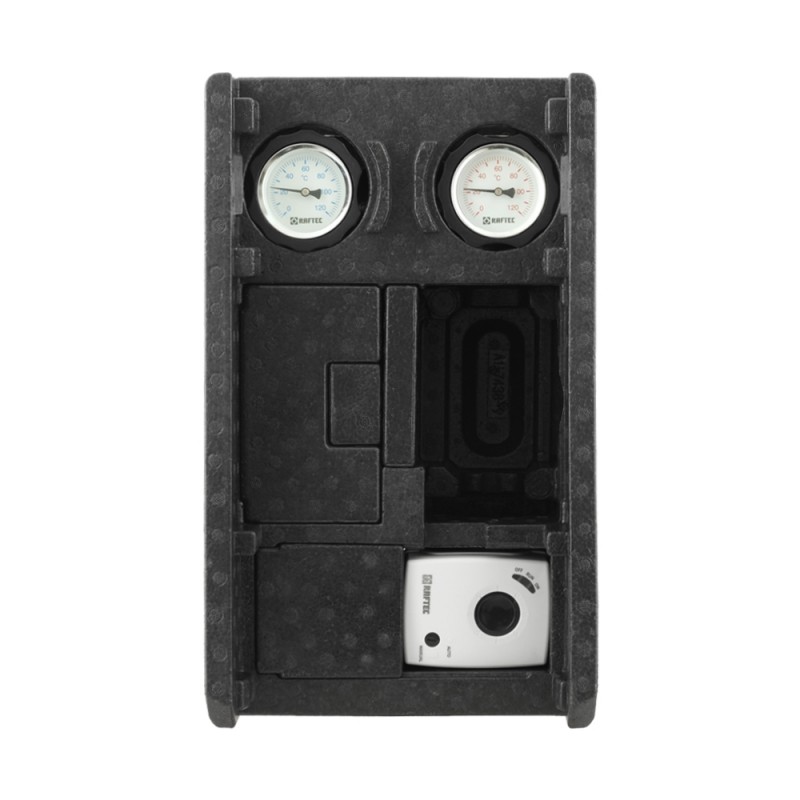

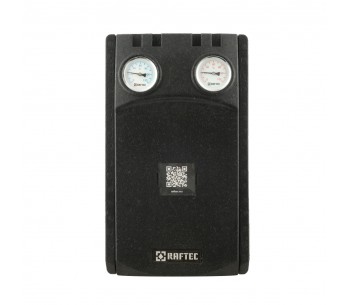

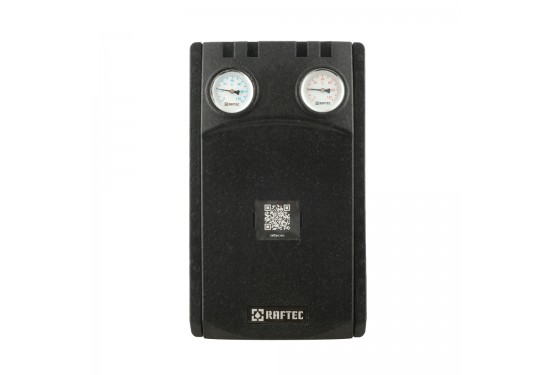

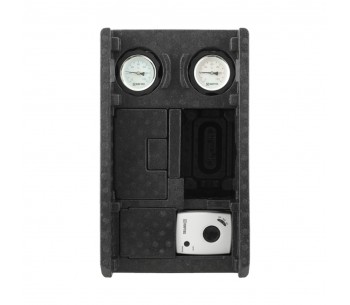

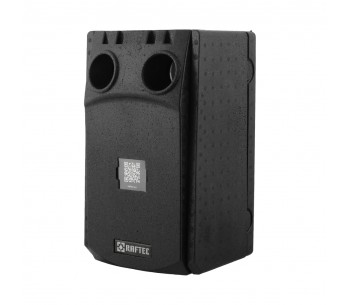

Pump-mixing group with servo drive RPMSDG05

✦ Nominal diameter - DN 25 mm
✦ Top connection - G 1” BP
✦ Bottom connection - G 1 1/2” ZR
✦ Center distance - 125 mm

Supplied with:
✦ Wall connection kit – 1 pc.
✦ Technical data sheet – 1 pc.

Pump and mixing unit with RPMSDG05 servo drive including:
✦ Thermometer – 2 pcs.
✦ Ball valve with thermometer handle – 1 pc.
✦ Ball valve with check valve and
✦ thermometer handle – 1 pc.
✦ Shut-off ball valve – 1 pc.
✦ Return line pipe – 1 pc.
✦ Connecting gasket kit – 1 set.

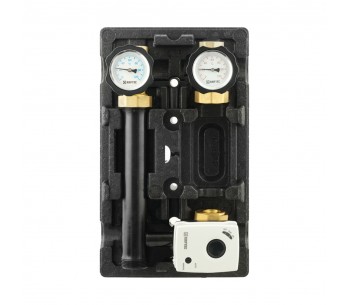

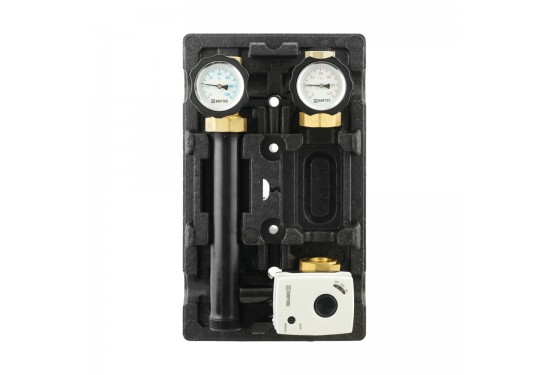

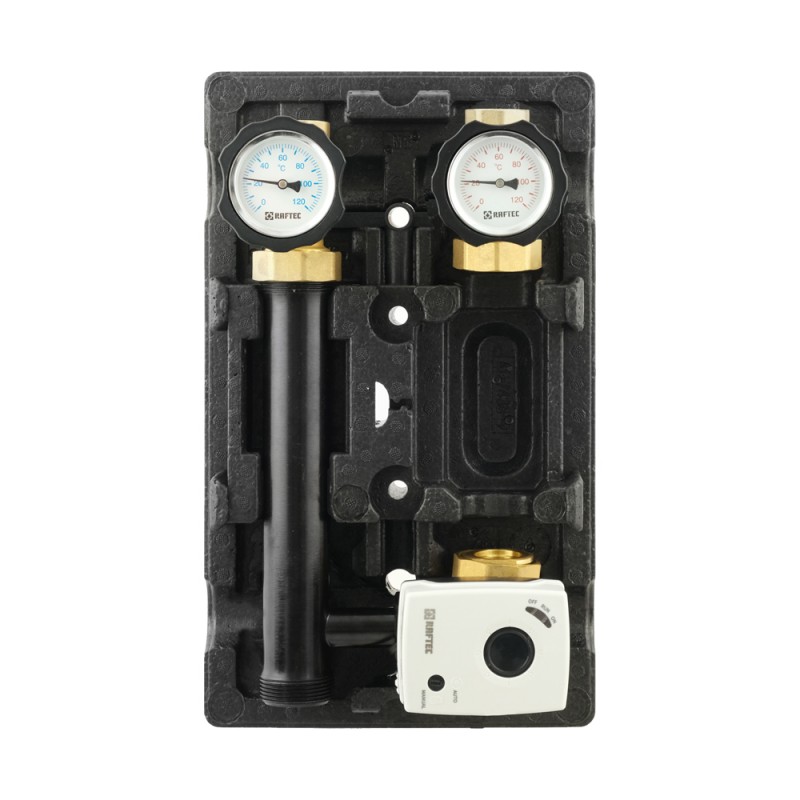

Description of the structure of the RPMGTB05 group
№    Name of element:
1    Removable handle with blue thermometer and ball valve;
2    Removable handle with red thermometer and ball valve;
3    Landing place for the pump - 180 mm;

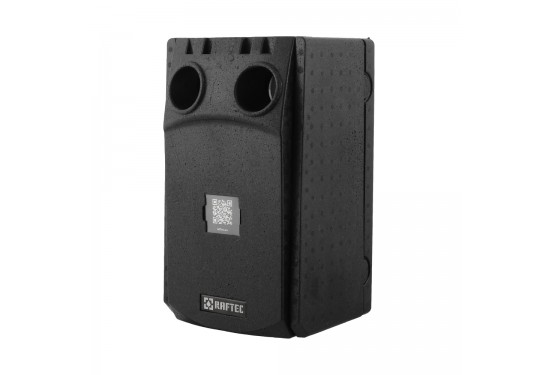

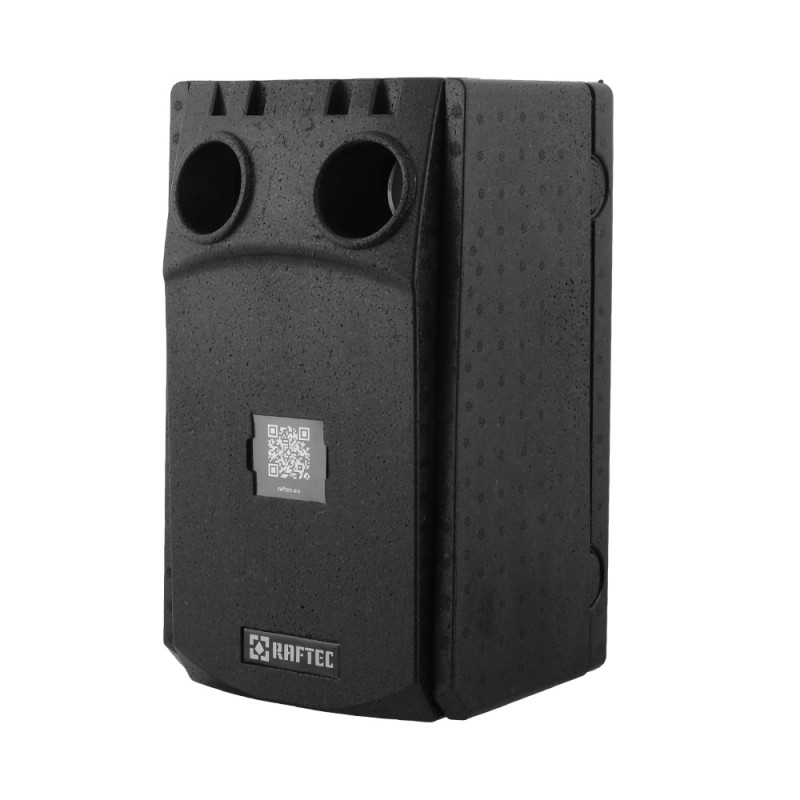

4    Thermal insulation;
5    Set for fastening the pump group to the wall;
6    Connection to the heating system - G1”;
7    Seal for mounting the pump (2 pcs.) - G1 1/2";
8    Nickel-plated return line pipe - G1 1/2";
9    Valve with servo drive - G1 1/2” ;
10    Union nut G 1 1/2”;
11     Bracket for mounting to the wall.
