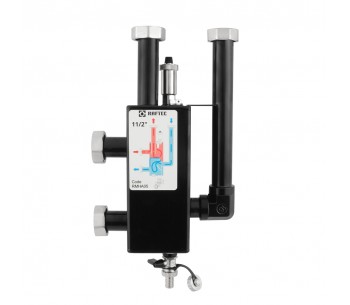

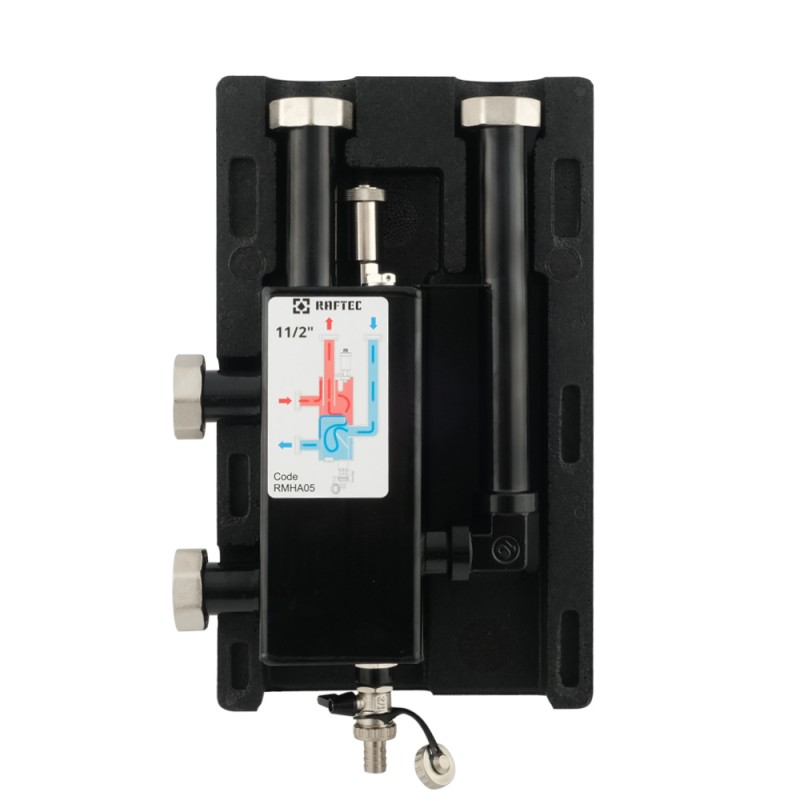

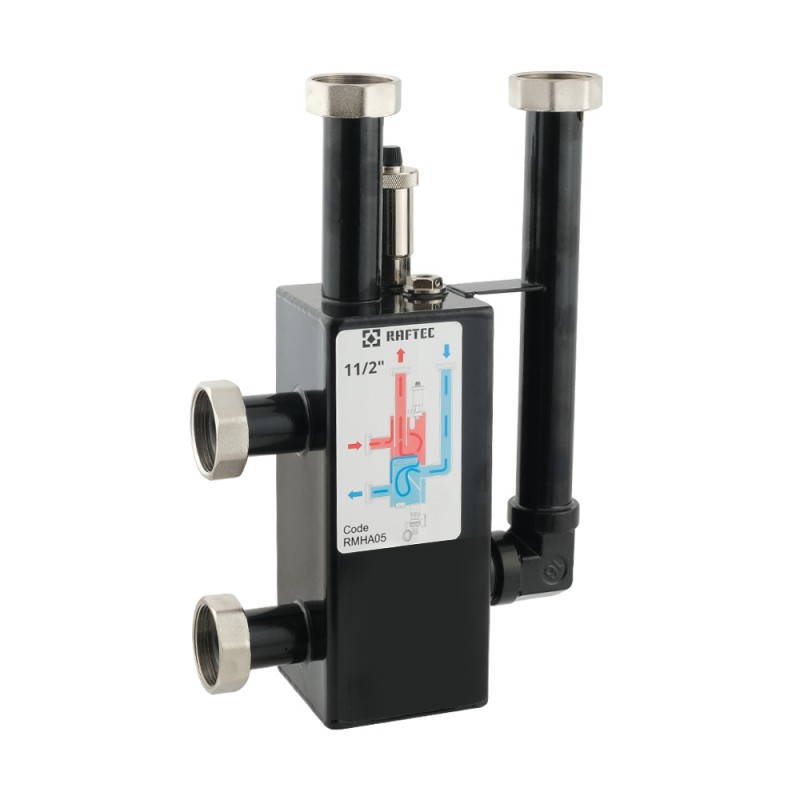

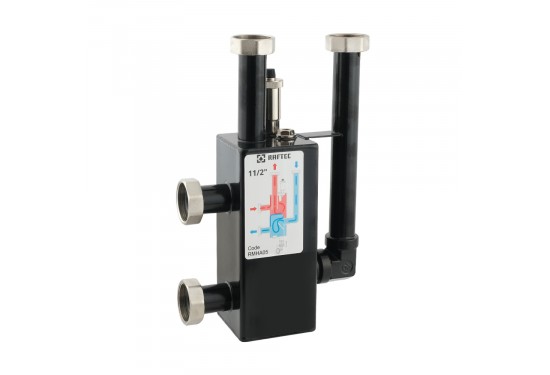

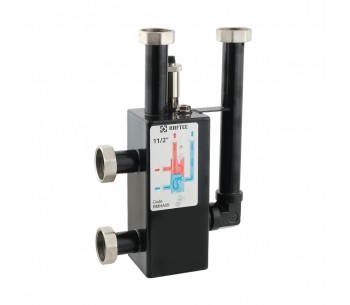

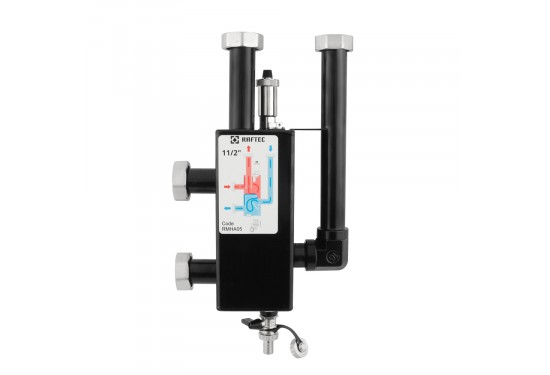

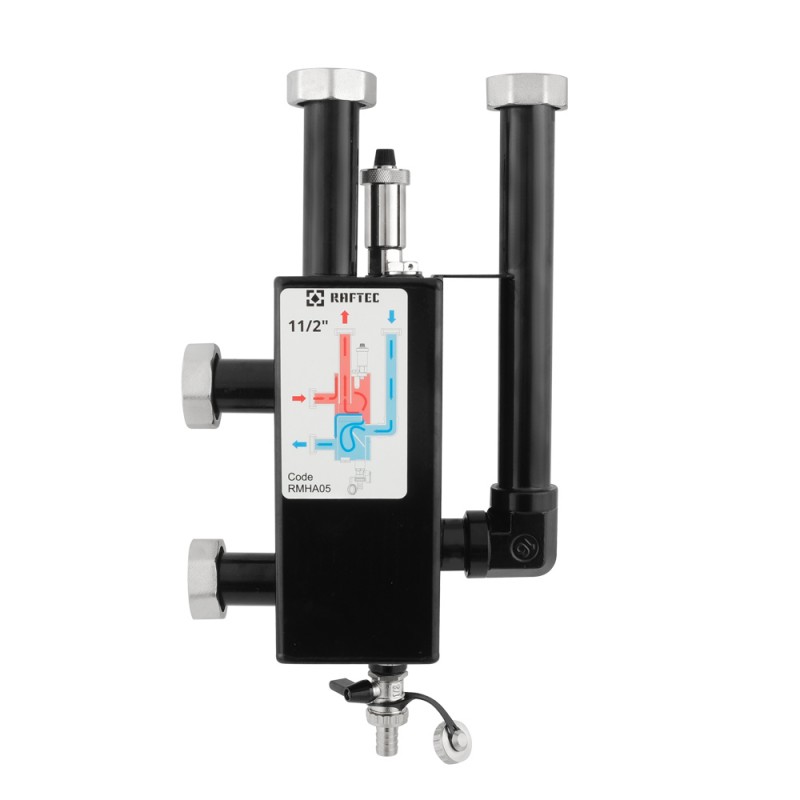

Hydraulic separator RMHA05

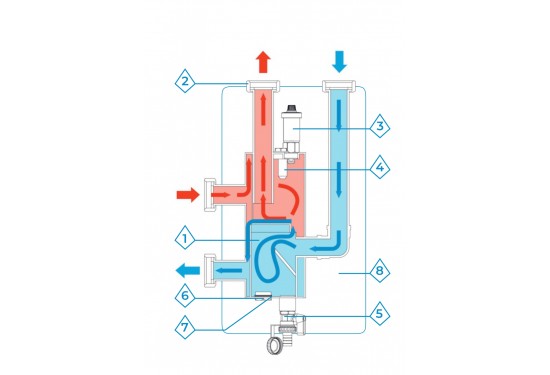

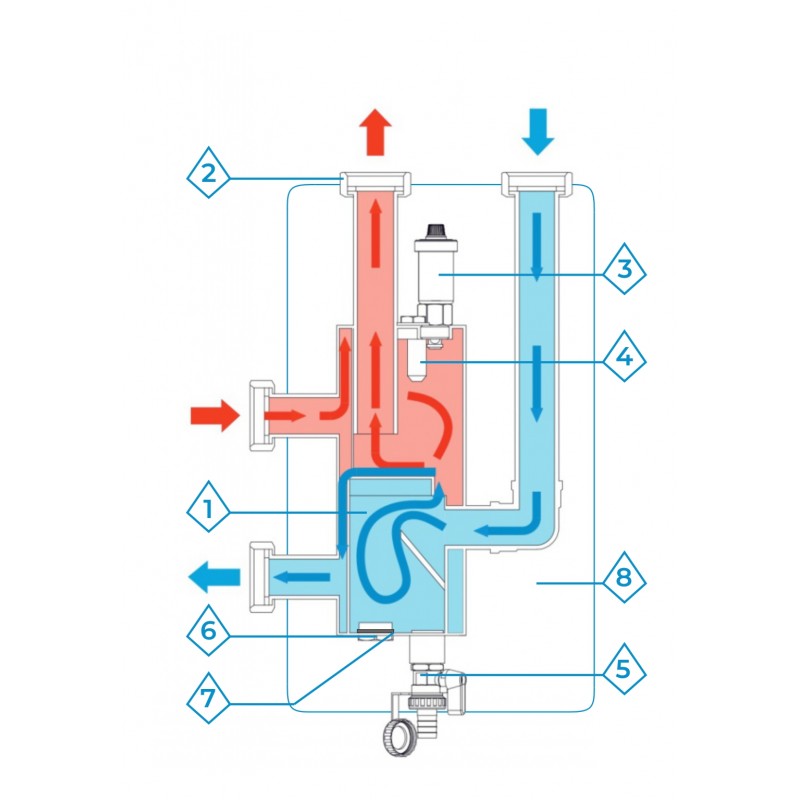

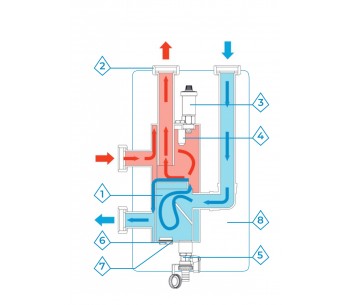

Hydraulic separator - hydraulic arrow, is designed to separate several hydraulic circuits of consumers and the heating circuit of the boiler.
➠
|
|
Description
✦ Maximum temperature - 110 °C
✦ Pressure class PN - 6 bar
✦ Power at ΔT=25°C - 85 kW
✦ Heat carrier flow at ΔT=25°C - 3 m3/h
✦ Consumer connection - 1 1/2” NG
✦ Source connection - 1 1/2” NG

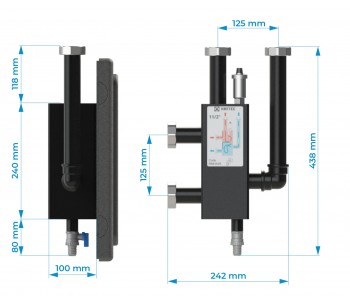

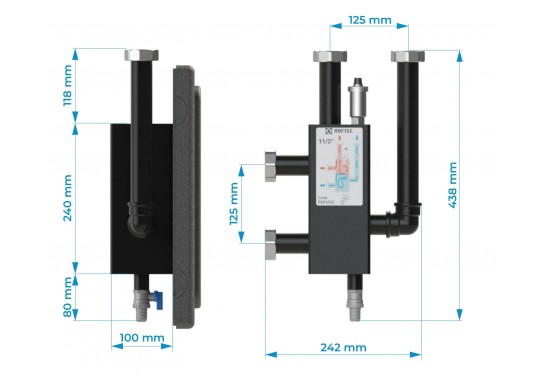

✦ Connection center distance - 125mm

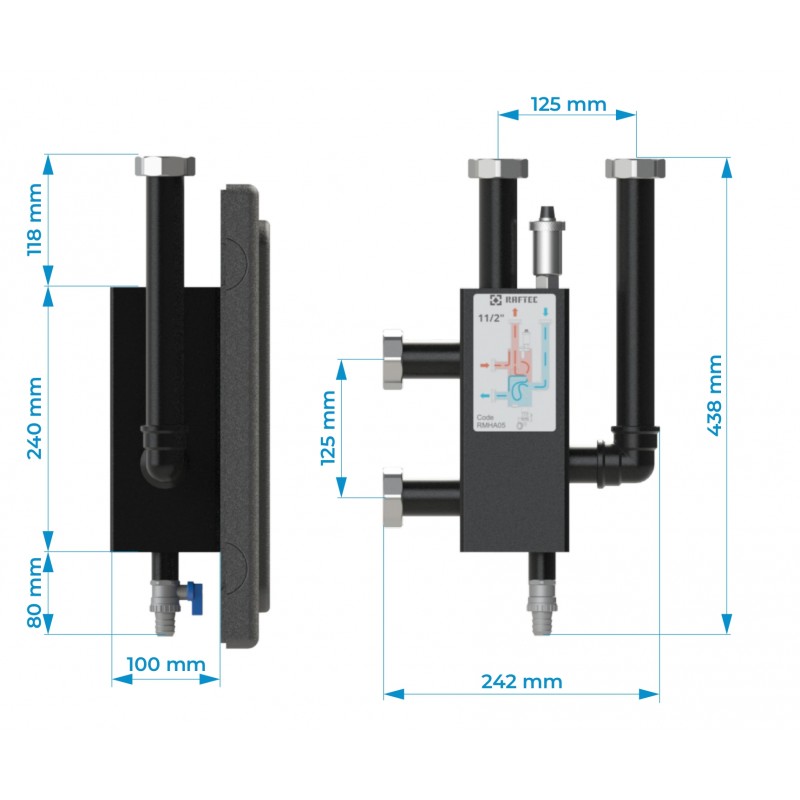

✦ Overall dimensions - 438mmx 242mmx100mm
✦ Location - vertical
✦ Heat carrier - water.
Delivery set:
Hydraulic separator - 1 pc
Set of union nuts - 1 set
Sludge drain valve - 1 pc
Passport - 1 pc

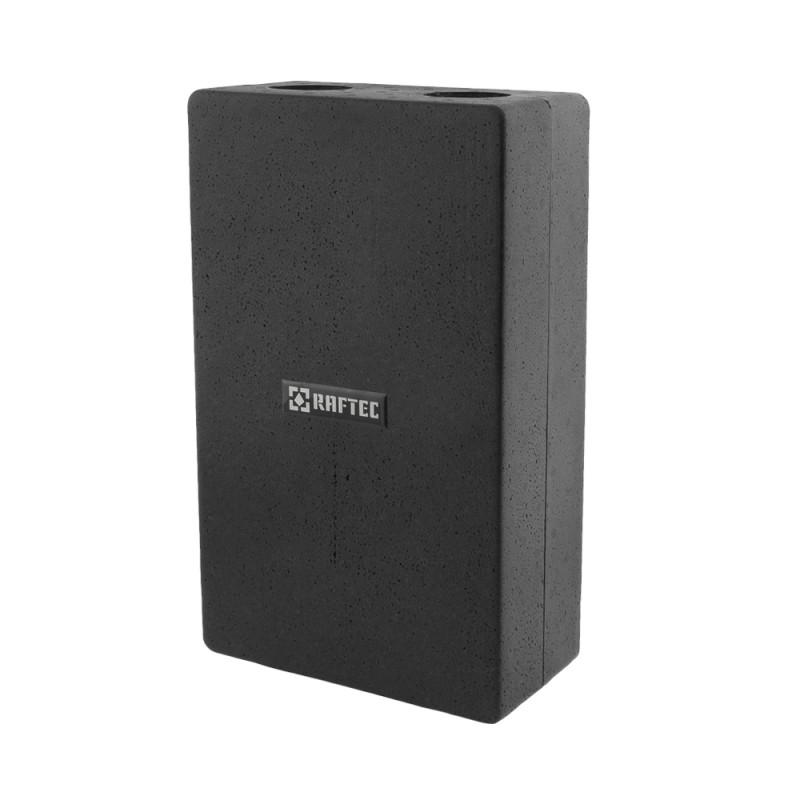

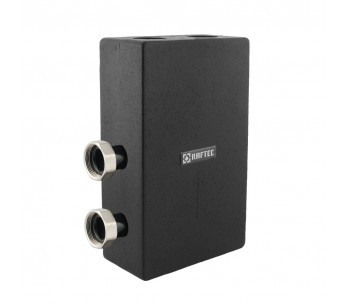

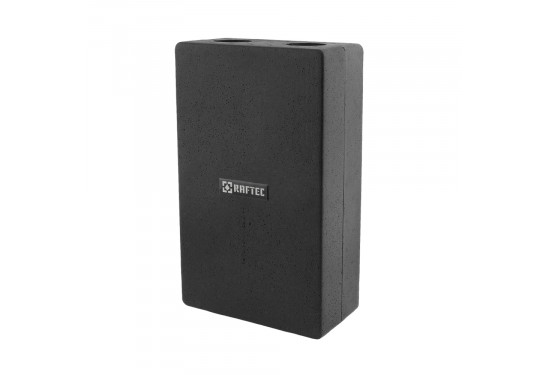

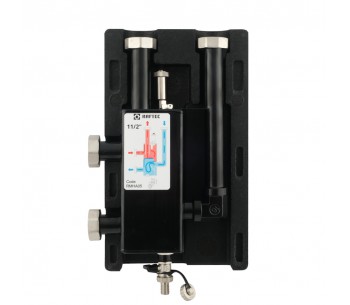

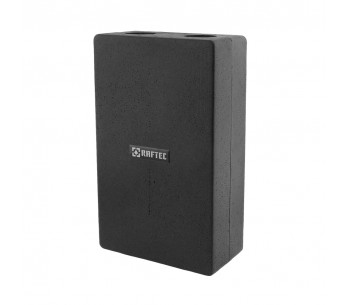

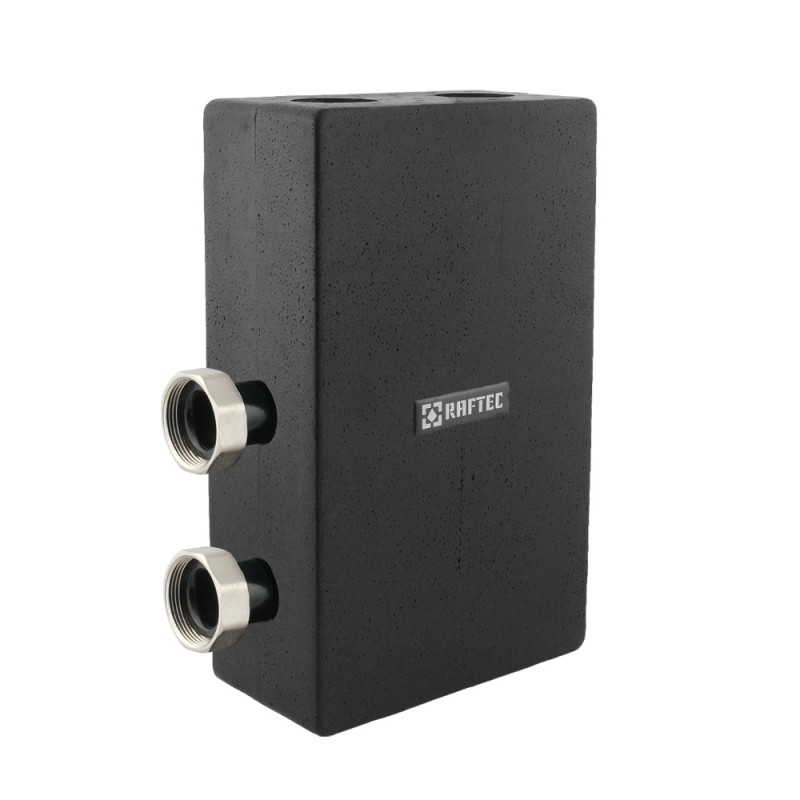

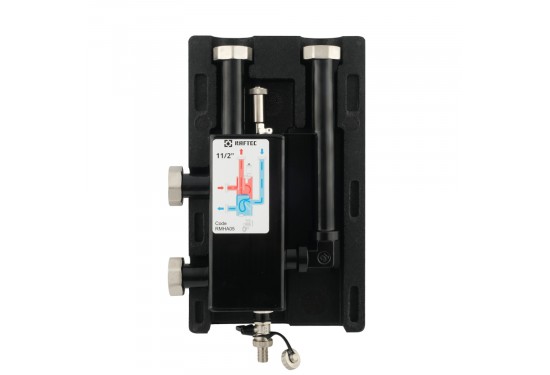

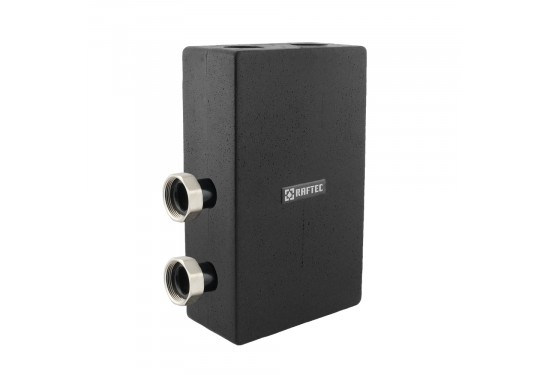

Removable EPP/EPS insulation - 1 set
