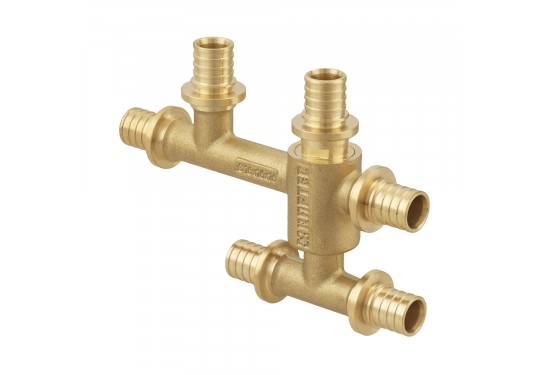

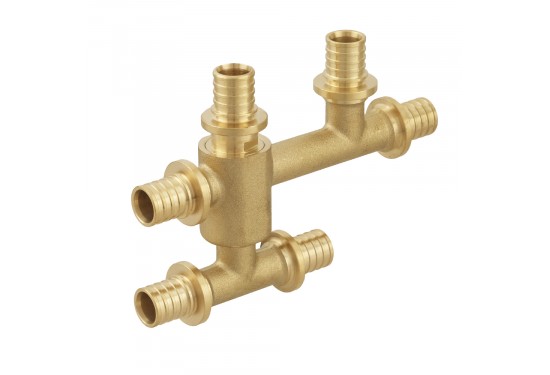

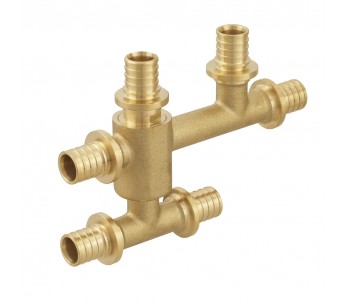

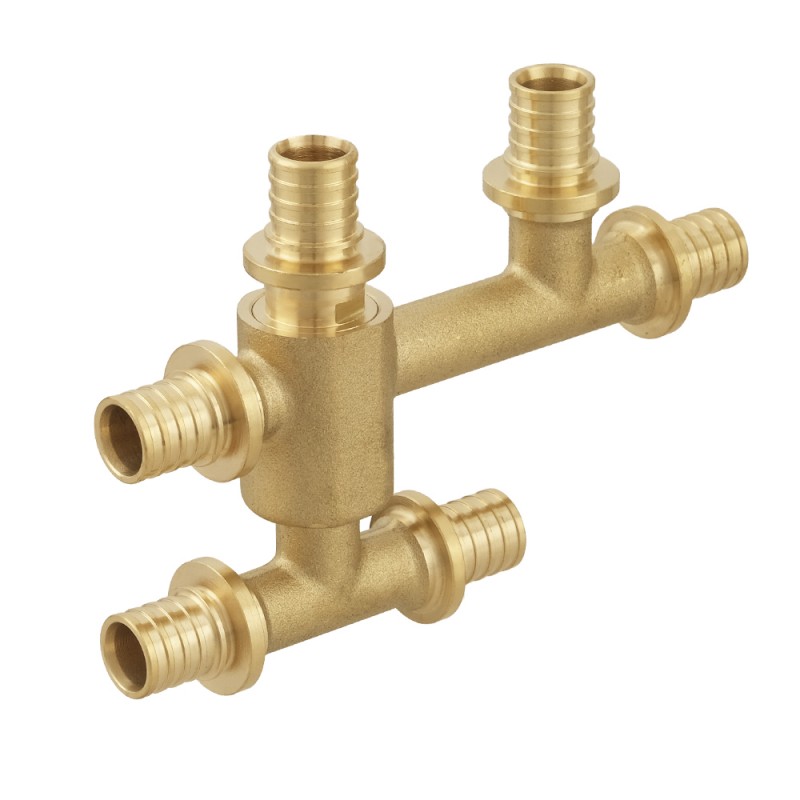

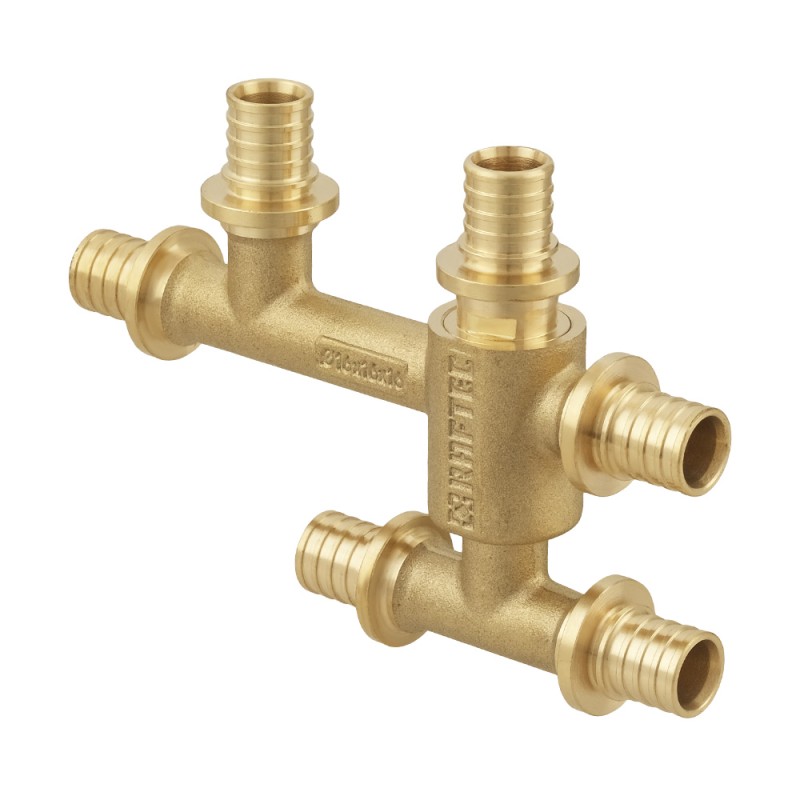

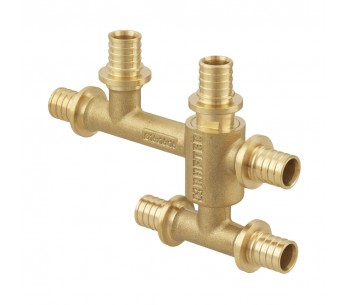

Double tension tee RAFTEC DPT16
The fitting is made of brass by the method of hot forming. Connectors have specially profiled fittings that are inserted into the extended end of the pipe. And then a brass ring is pulled onto the connection using a manual or hydraulic press. The pipe is hermetically fixed with a ring on the fitting of the connector. In the Raftec system, connectors are universal for all types of pipes with a wall thickness of 16х2.2 / 20х2.8 / 25х3.5 / 32х4.4.
➠
|
|
Description
Double tension tee - Brass fitting is designed to create connections in cross-linked polyethylene pipe systems PEX-A, PEX-B, PEX-C, PERT. It is used in drinking, domestic, technological, cold and hot water supply, heating, compressed air systems.
Specifications
| Nominal pressure Pn, MPa: | 10 |
| Warranty, Years: | 7 |
| Body material: | Brass |
| Operating temperature, °C: | 90 |
| Average full service life, years: | 20 |
