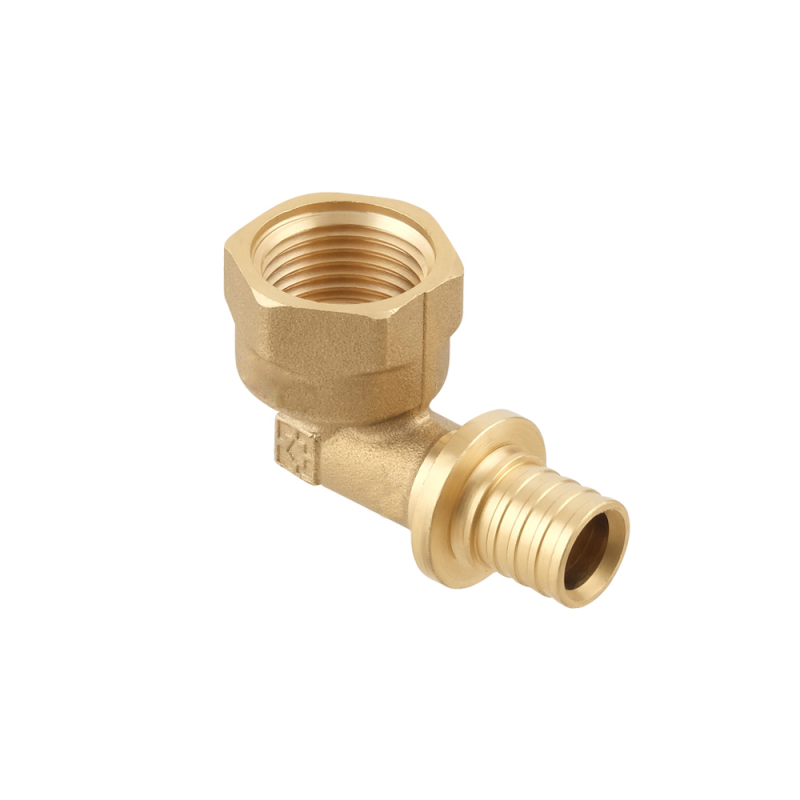

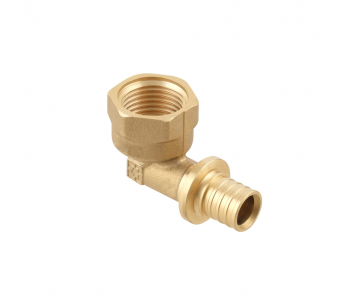

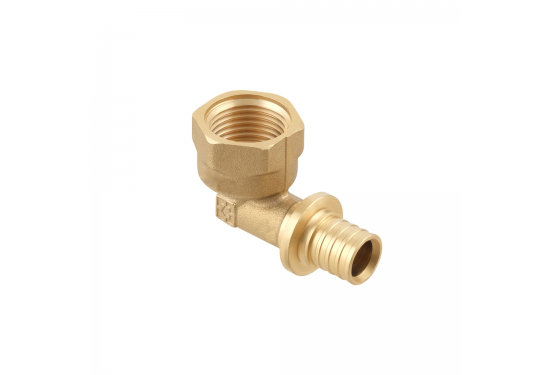

RAFTEC tension corner with internal thread PKV1601-3203

Documentation

TECHNICAL PASSPORT OF THE PRODUCT: PEX tension fittings

The fitting is made of brass by the method of hot forming. Connectors have specially profiled fittings that are inserted into the extended end of the pipe. And then a brass ring is pulled onto the connection using a manual or hydraulic press. The pipe is hermetically fixed with a ring on the fitting of the connector. In the Raftec system, connectors are universal for all types of pipes with a wall thickness of 16х2.2 / 20х2.8 / 25х3.5 / 32х4.4.
