RAFTEC tee

Documentation

The fitting is made of brass by the method of hot forming and covered with nickel. Pipe cylindrical thread of class “A” is used in threaded fittings, which meets the standards (ISO228/2. ISO 7/2). Fittings are used on pipelines made of different materials. To seal the threaded joints, it is necessary to use - sanitary linen with an anaerobic sealant, polyamide fibre, teflon.

Modifications

➠

Sku	Size	Weight	Package	In Box
TVVV020102	3/4"х1/2"х3/4"	125g	3pcs	33pcs
TVVV030103	1"х1/2"х1"	250g	1pc	19pcs
TVVV030203	1"х3/4"х1"	246g	1pc	19pcs

Description

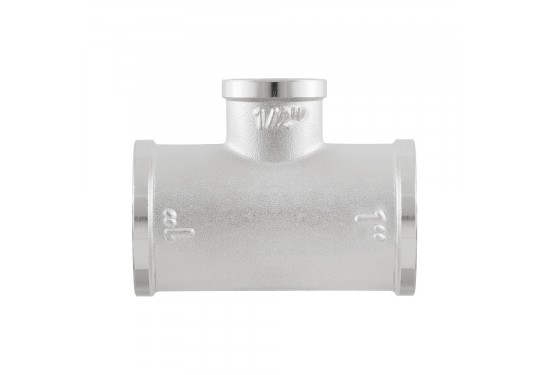

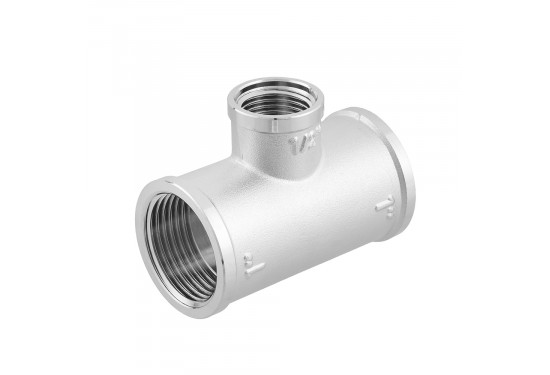

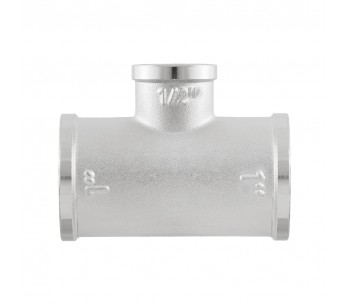

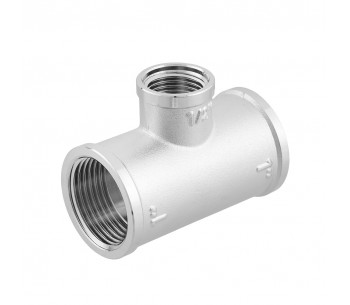

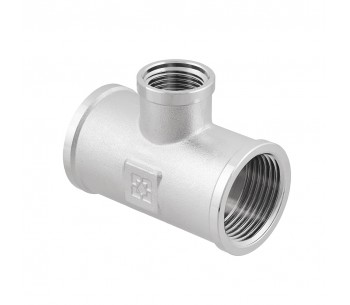

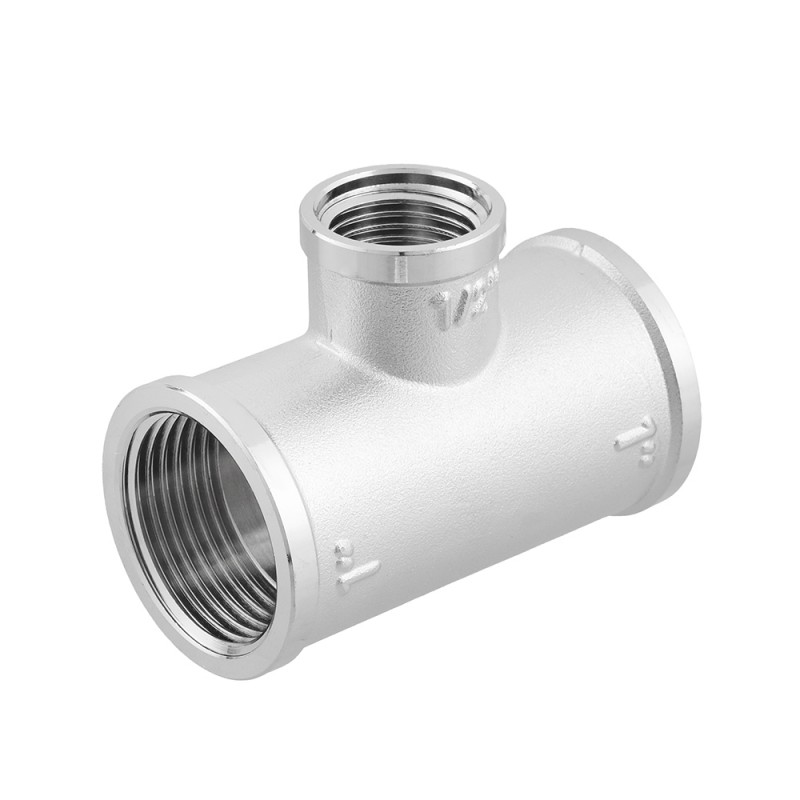

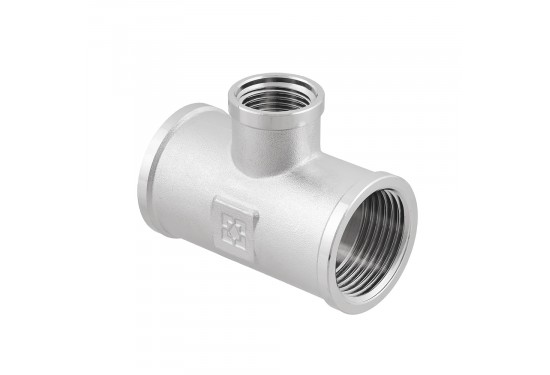

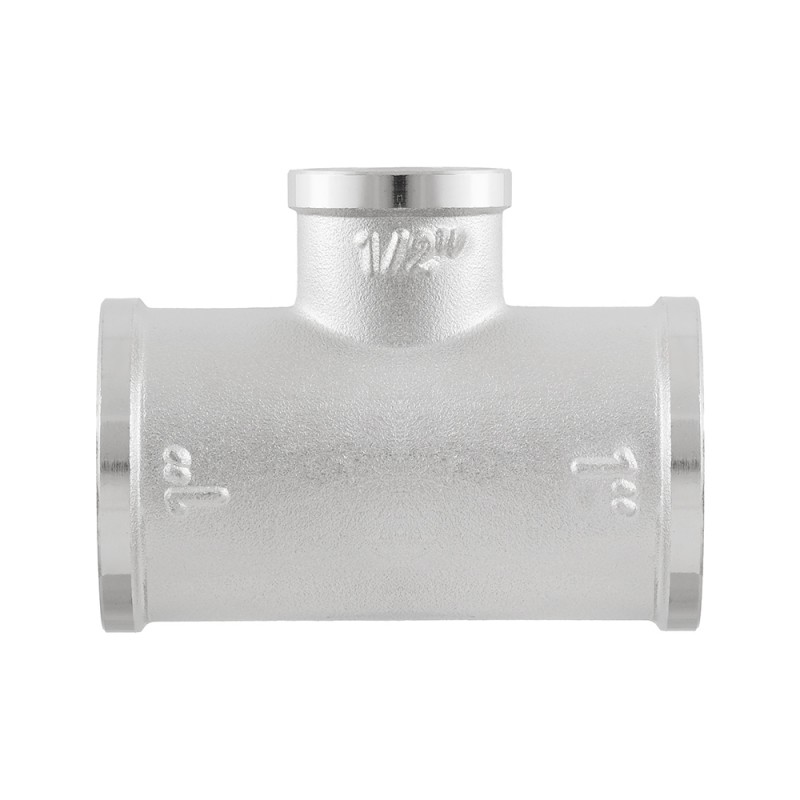

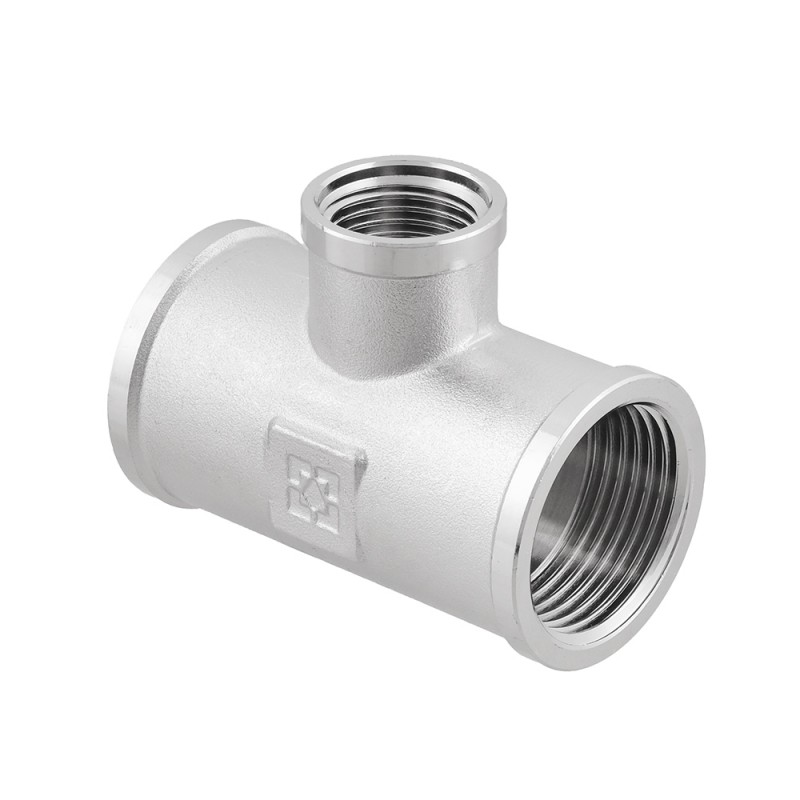

Raftec threaded fitting - nickel-plated brass three-way fitting with a smaller diameter outlet. Internal cylindrical pipe thread ISO 228, EN 10226.

Specifications

Warranty, Years:	7
Body material:	Nickel-plated brass
Operating temperature, °C:	from -25 to 200
Average full service life, years:	35
Thread:	F-F-F
Thread accuracy class:	"А" (ISO7/2)
Diameter efficiency class:	Full-opening
