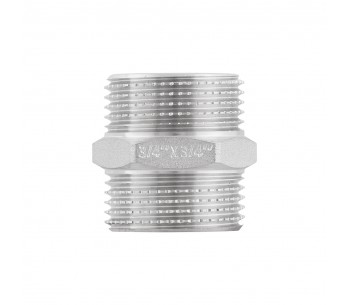

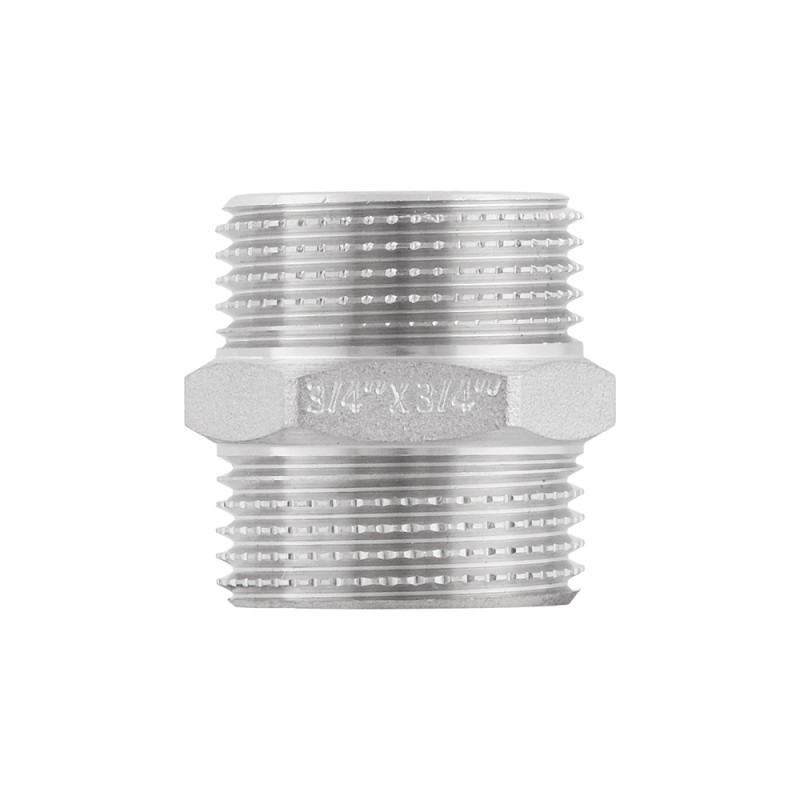

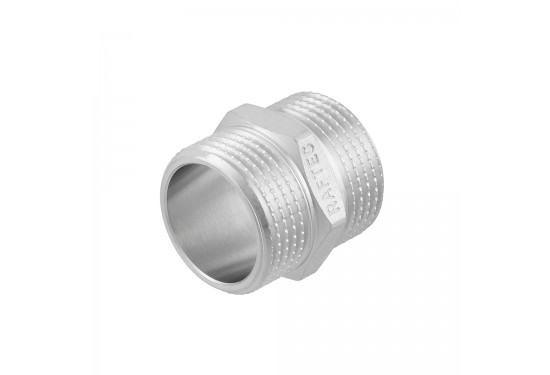

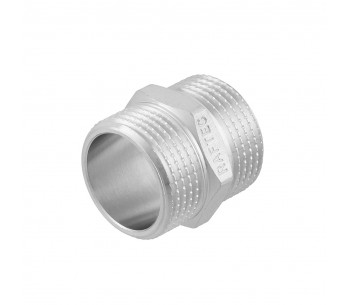

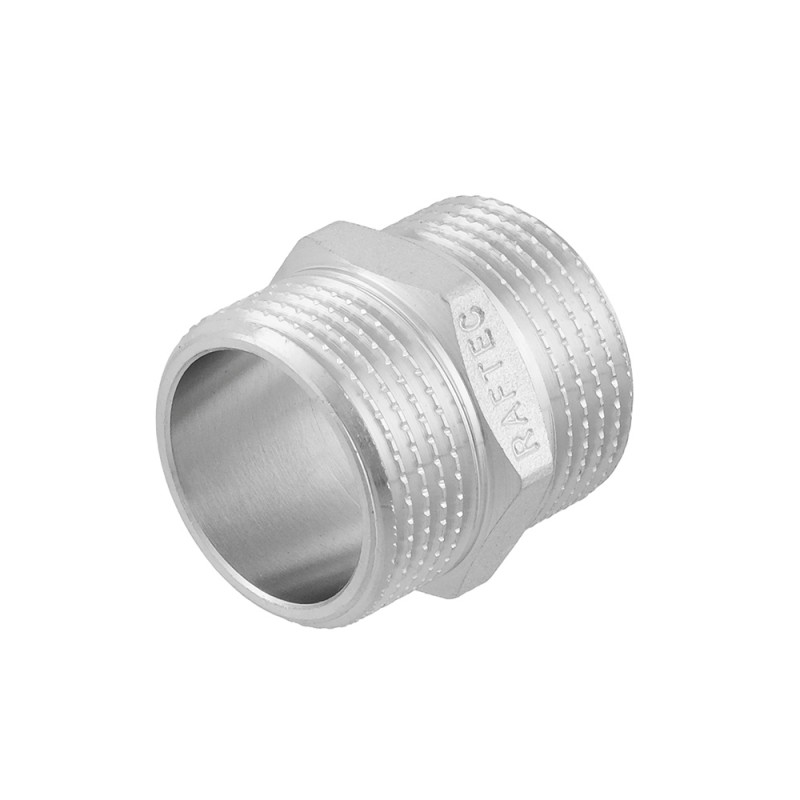

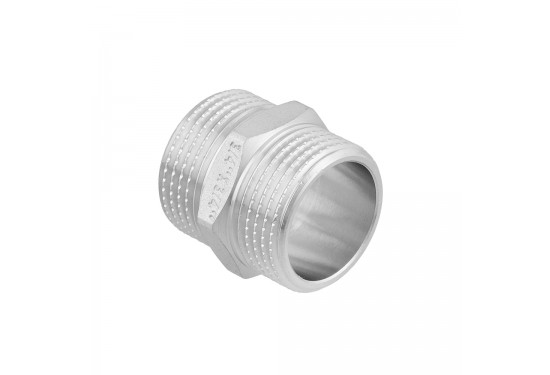

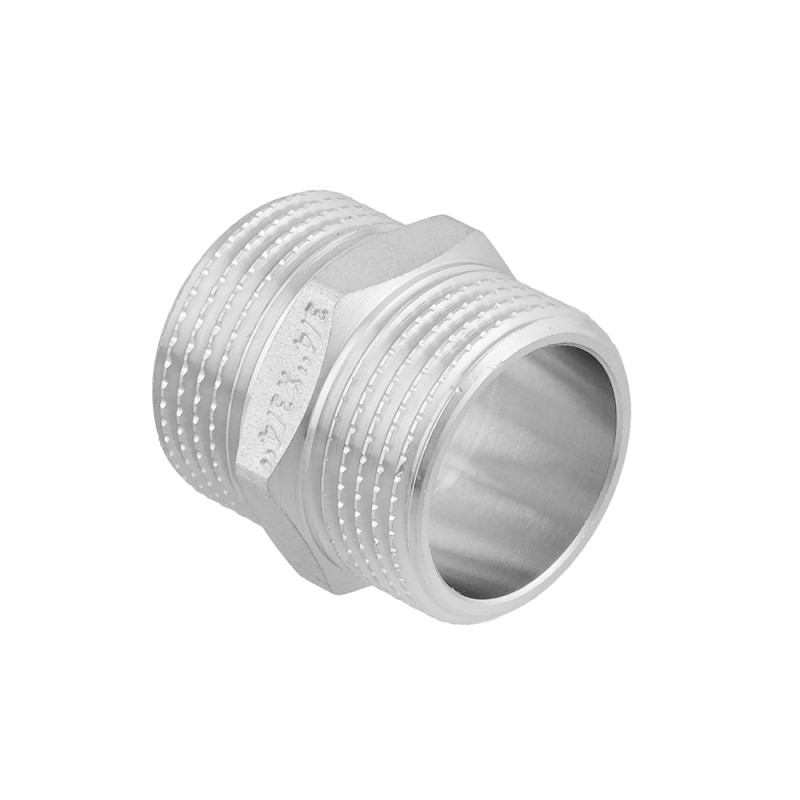

RAFTEC nipple

The fitting is made of brass by the method of hot forming and covered with nickel. Pipe cylindrical thread of class “A” is used in threaded fittings, which meets the standards (ISO228/2. ISO 7/2). Fittings are used on pipelines made of different materials. To seal the threaded joints, it is necessary to use - sanitary linen with an anaerobic sealant, polyamide fibre, teflon.

Modifications

➠

Sku	Size	Weight	Package	In Box
N01	1/2"	29g	10 pcs	170 pcs
N02	3/4"	44g	10 pcs	110 pcs
N03	1"	90g	5 pcs	60 pcs
N04	1 1/4"	150g	5 pcs	35 pcs
N05	1 1/2"	174g	5 pcs	30 pcs
N06	2"	270g	5 pcs	18 pcs

Description

Raftec threaded fitting - nickel-plated brass union for connecting pipeline elements of equal diameter. External straight thread, cylindrical pipe ISO 228, EN 10226. Hexagonal body for a wrench.

Specifications

Warranty, Years:	7
Body material:	Nickel-plated brass
Operating temperature, °C:	from -25 to 200
Average full service life, years:	35
Thread:	M-M
Thread accuracy class:	"А" (ISO7/2)
Diameter efficiency class:	Full-opening
Notch on thread:	Yes
