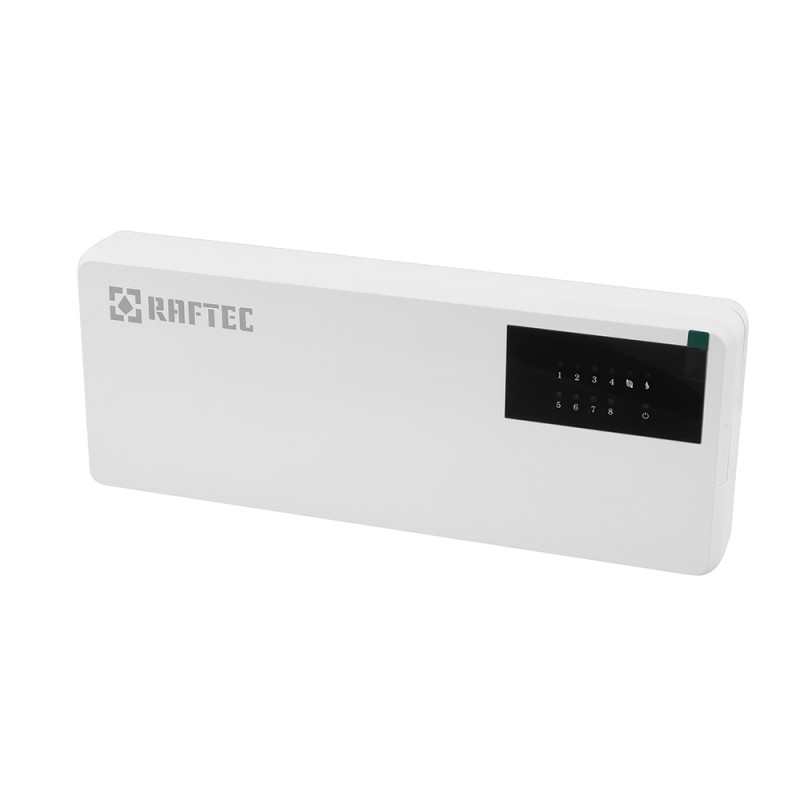

Zone communicator R100W

The zone controller allows actuators to be grouped and is designed to control up to 8 heating zones (rooms). The controller features a relay output for controlling the heating system circulation pump and boiler. When there is no demand for heating (all thermostatic valves are closed), the pump is automatically switched off, reducing energy consumption and extending the pump's service life. An LED indicator signals when a control signal is supplied to any actuator. The controller can operate normally closed (NC) and normally open (NO) actuators.

Power supply: 230 V, ±15%, 50/60 Hz
Maximum input power: 1000 W
Load current: 5 A
Maximum relay output current: 3 A
Boiler output: COM/NO/NC
Fuse: 15 A
Number of thermostats that can be connected: 8
Number of actuators that can be connected: 16
Type of controlled actuators: NC/NO
Operating temperature: −20 °C to +60 °C
Dimensions (H × W × D): 278 × 110 × 40 mm

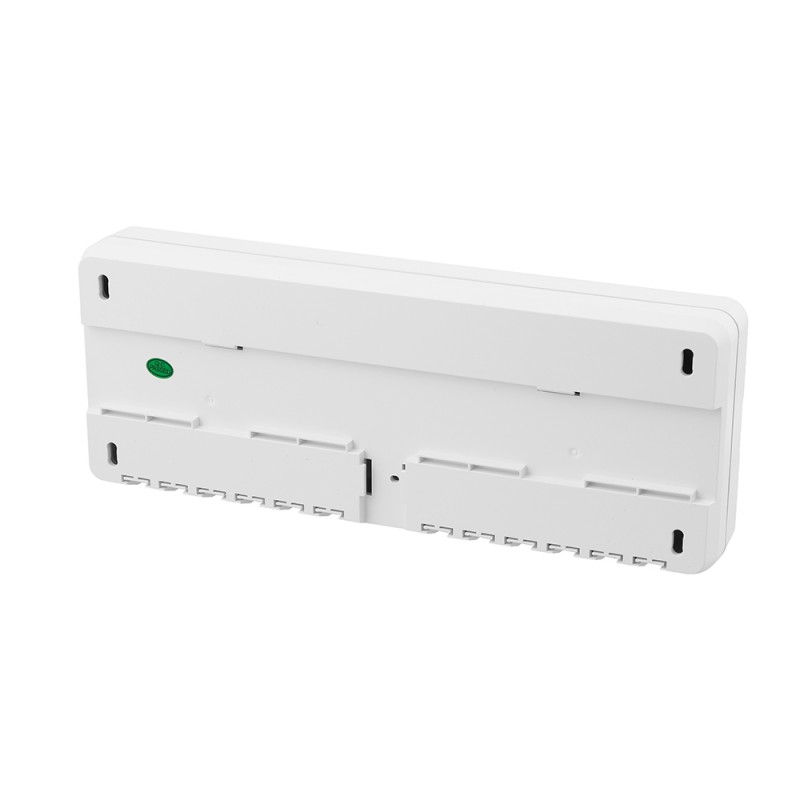

Installation: wall-mounted
Average service life: 10 years
