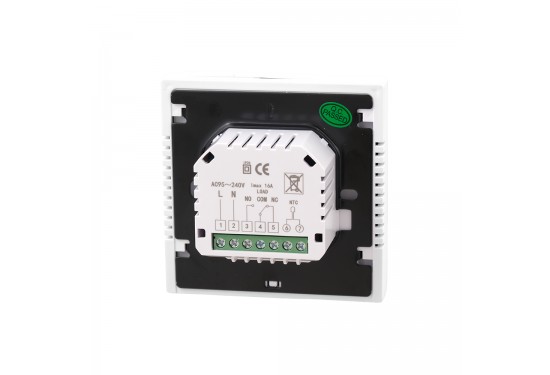

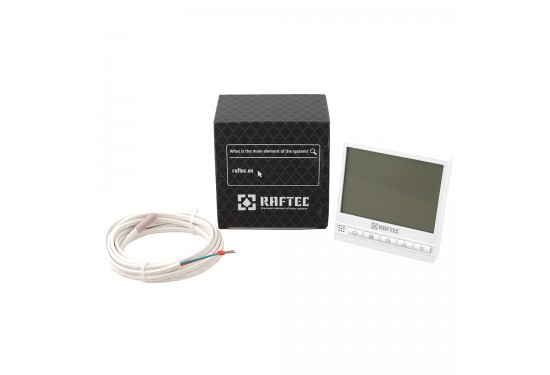

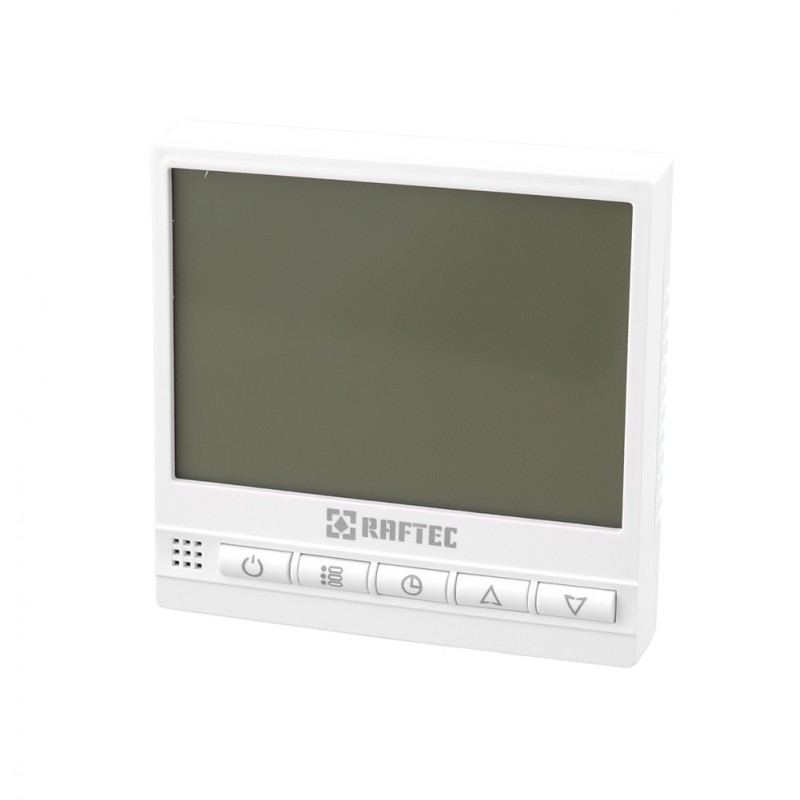

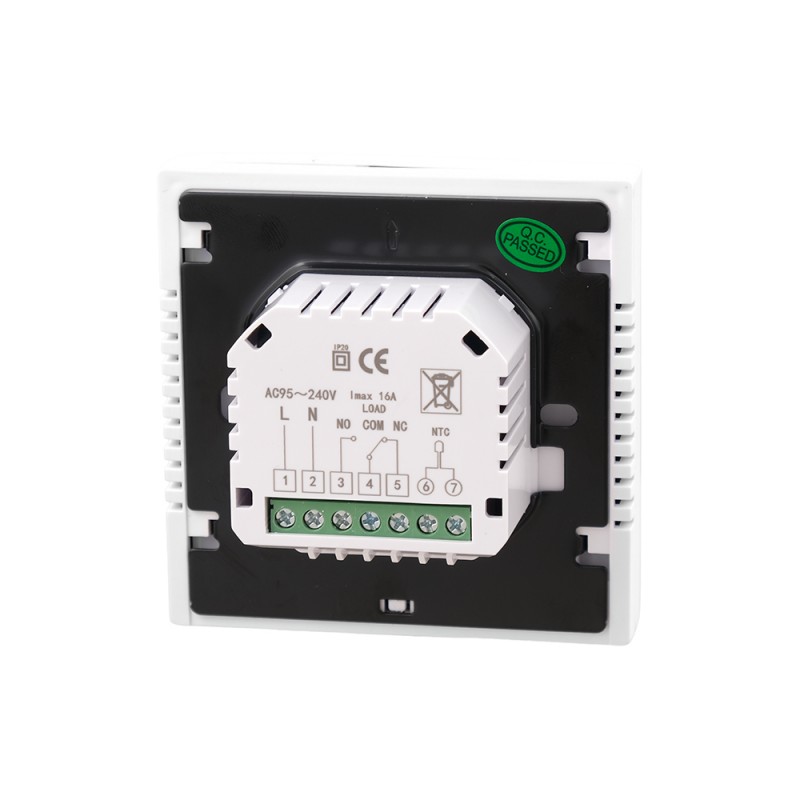

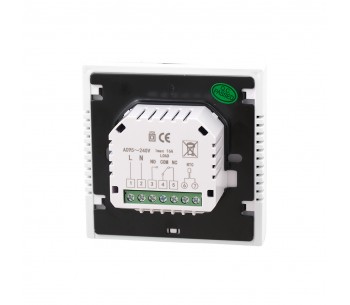

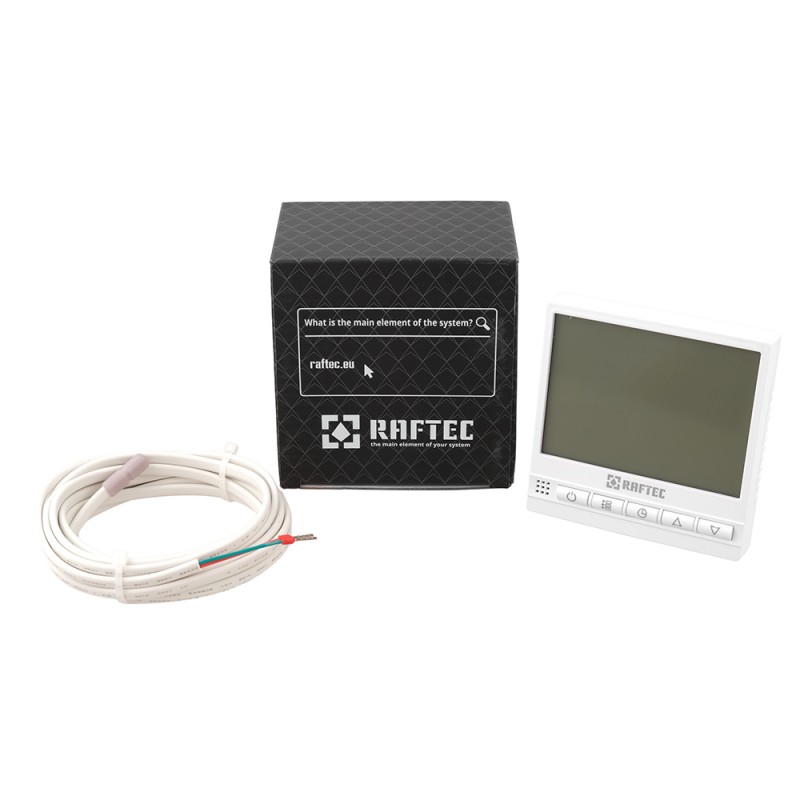

Wired, digital thermostat for underfloor heating R200HG-W

R200HG is a wired thermostat designed to control electric underfloor heating or water underfloor heating actuators based on the temperature sensor inside the floor or the room air temperature. The thermostat can also control the operation of gas or electric boilers. The thermostat is connected to the zone controller by wire. Data transmission is carried out via the RS protocol. Compatible with the Raftec R100W zone controller.

The thermostat features three weekly programming modes, providing greater comfort and energy savings.

Power supply: 230 V, 50–60 Hz
Temperature measurement accuracy: 0.5 °C
Temperature control range: 5–95 °C
Control: manual / programmable
Load: 16 A
Maximum electric underfloor heating power: 3.2 kW
Programming modes: 5+2 / 6+1 / 7 (4 periods)
Display: monochrome
Dimensions (H × W × D): 86 × 86 × 13.2 mm
Installation: wall-mounted
Average service life: 10 years
