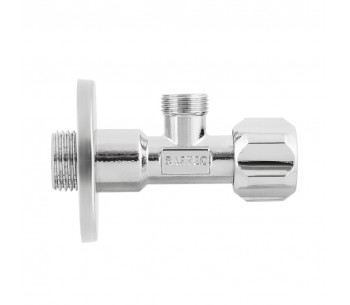

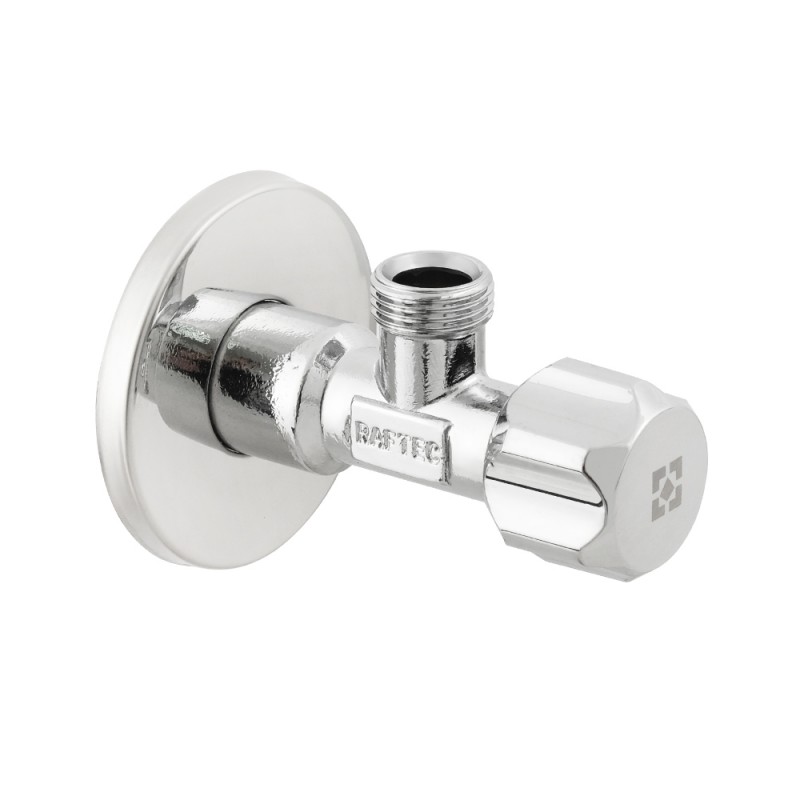

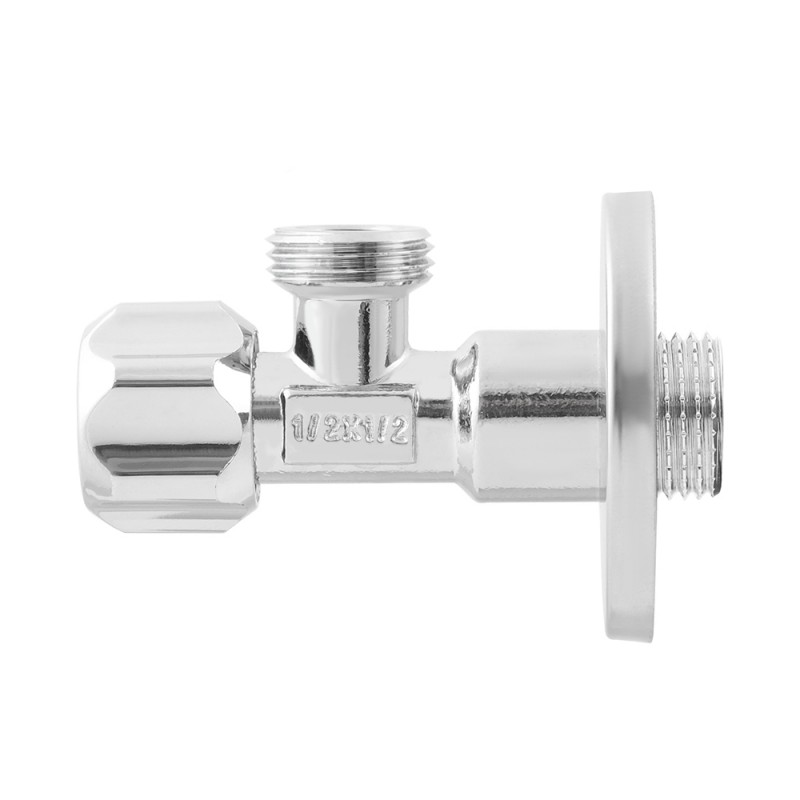

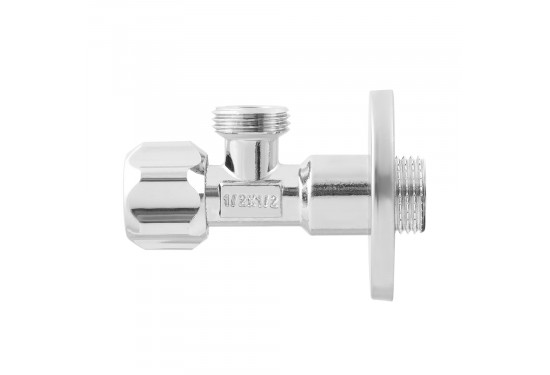

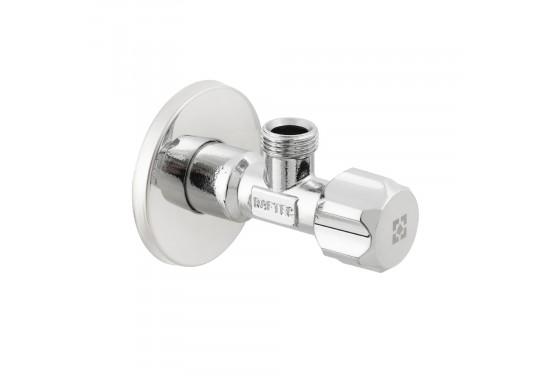

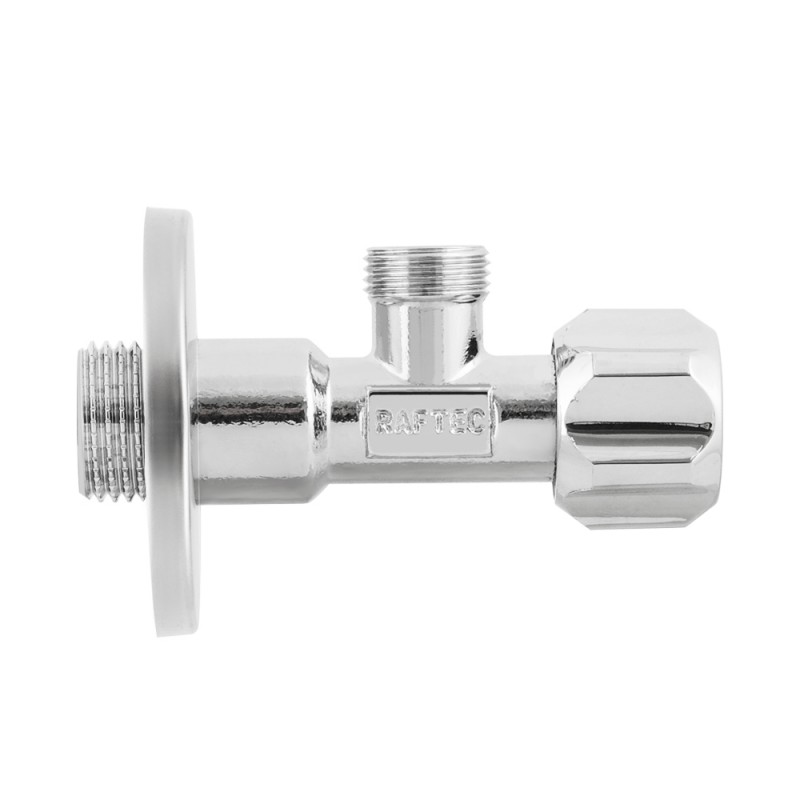

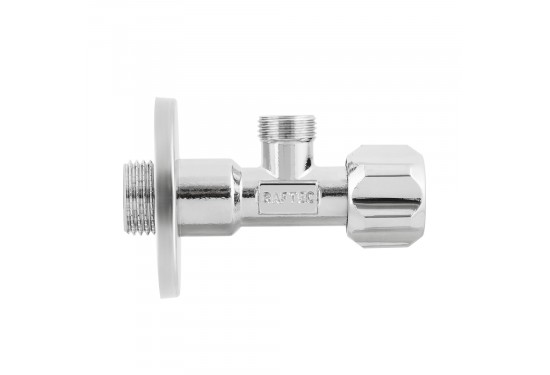

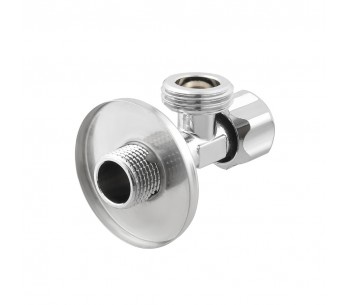

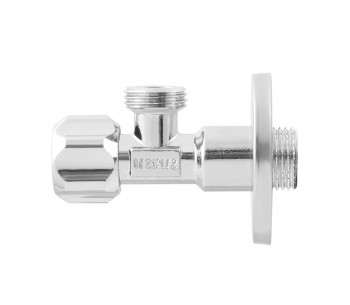

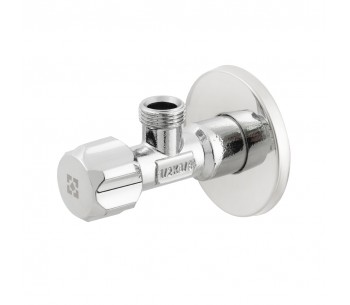

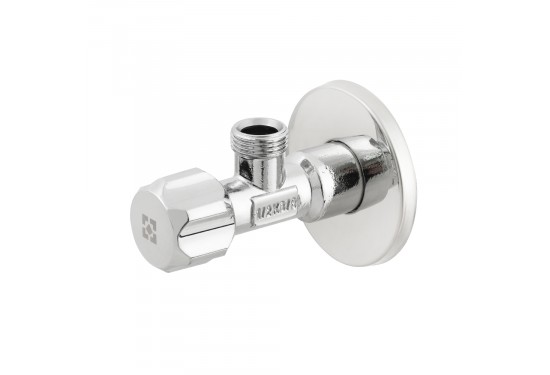

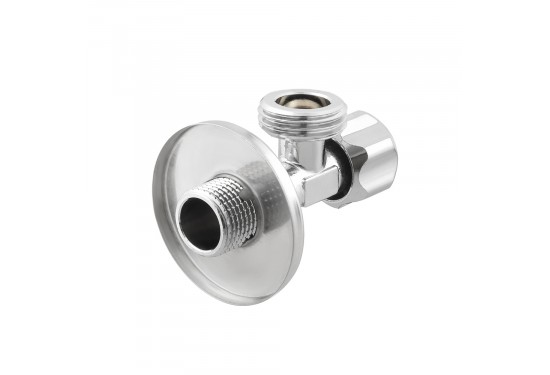

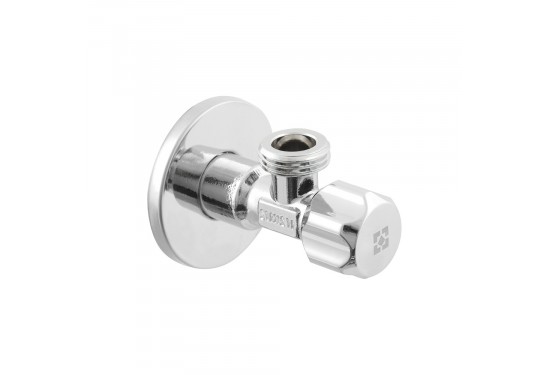

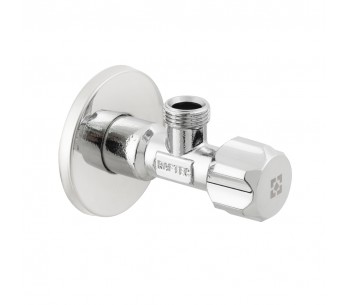

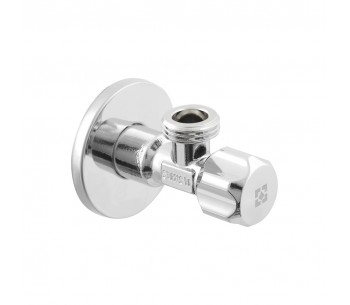

RAFTEC SILVER angle gate valve for connecting household appliances VBE0101-02

  • RAFTEC SILVER angle gate valve for connecting household appliances VBE0101-02
  • RAFTEC SILVER angle gate valve for connecting household appliances VBE0101-02
  • RAFTEC SILVER angle gate valve for connecting household appliances VBE0101-02
RAFTEC SILVER angle gate valve for connecting household appliances VBE0101-02
RAFTEC SILVER angle gate valve for connecting household appliances VBE0101-02
RAFTEC SILVER angle gate valve for connecting household appliances VBE0101-02
Documentation
TECHNICAL DATA SHEET OF THE PRODUCT: Angle tap for connecting household appliances (VBE0101)
The valve is made of brass by the method of hot forming and covered with chrome. The valve mechanism is made of a brass slider with a seal, which, rotating by the handle, gradually blocks the flow. Pipe cylindrical thread of class “A” is used in ball valves, which meets the standards (ISO228/2. ISO 7/2). Valves are used on pipelines made of different materials. To seal the threaded joints, it is necessary to use - sanitary linen with an anaerobic sealant, polyamide fibre, teflon. It is not allowed to use the valve to transport media aggressive to materials of its elements.
Modifications
➠
                  Array
(
    [278] => Array
        (
            [Sku] => VBE0101
            [Size] => 1/2"x1/2"
            [Package] => 1 / 100 pc
            [Price] =>
        )

    [277] => Array
        (
            [Sku] => VBE0102
            [Size] => 1/2"х3/4"
            [Package] => 1 / 100 pc
            [Price] =>
        )

)

                  Array
(
    [278] => Array
        (
            [Sku] => VBE0101
            [Size] => 1/2"x1/2"
            [Package] => 1 / 100 pc
            [Price] =>
        )

    [277] => Array
        (
            [Sku] => VBE0102
            [Size] => 1/2"х3/4"
            [Package] => 1 / 100 pc
            [Price] =>
        )

)
Sku Size Package
VBE0101 1/2"x1/2" 1 / 100 pc
VBE0102 1/2"х3/4" 1 / 100 pc
Description

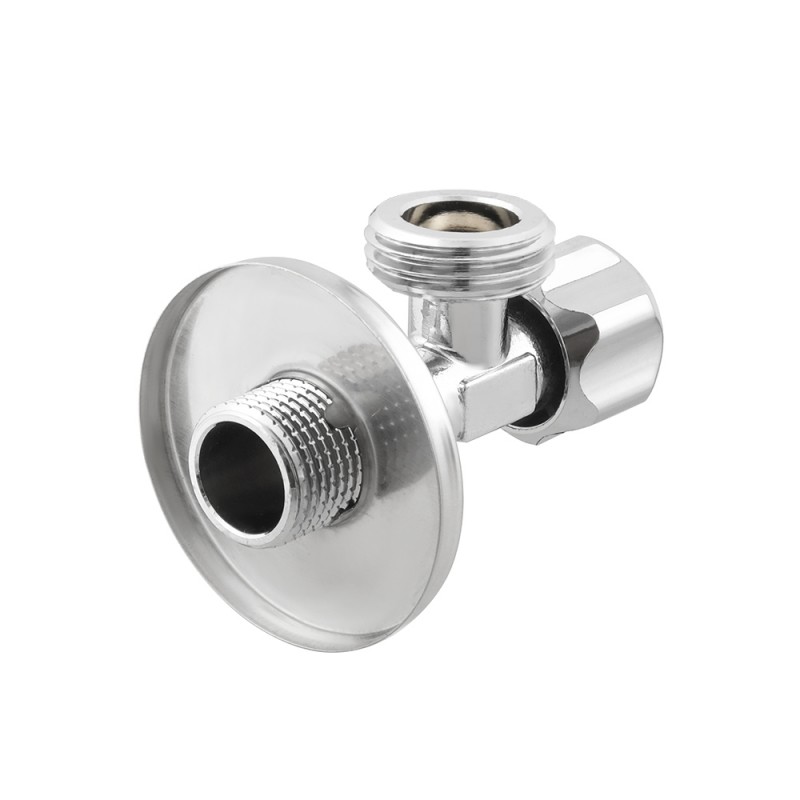

The Raftec Silver series gate valve is designed for connection to hot and cold water supply networks, plumbing fittings using flexible hoses with a cap nut. The set includes a decorative bowl.

Specifications
➠
Warranty, Years: 5
Body material: Chrome plated brass
Operating temperature, °C: from 0 to 90
Average full service life, years: 15
Handle type: Swivel cap
Thread: M-M
Thread accuracy class: "А" (ISO7/2)
Notch on thread: Yes
Average service life (opening-closing), times: 3000
Average time between failures (opening-closing), times: 3000
Handle material: Plastic
Stammmaterial: Brass
Seal: EPDM
Material of decorative bowl: Chrome plated brass
