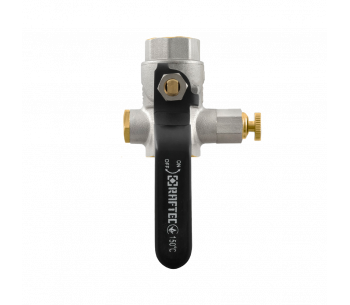

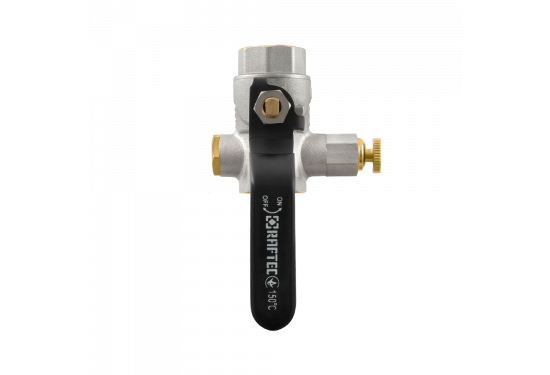

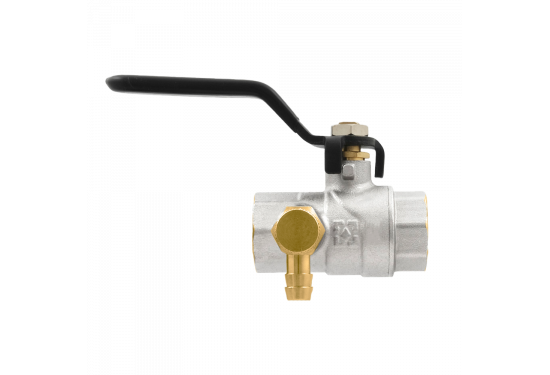

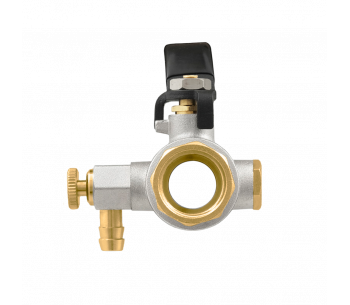

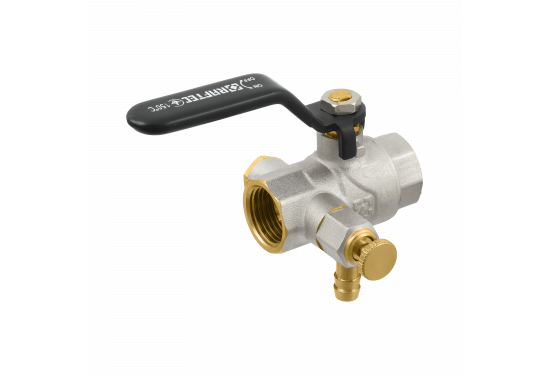

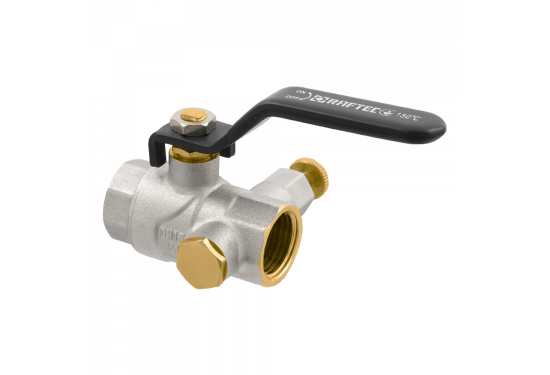

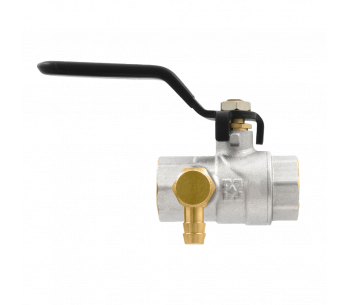

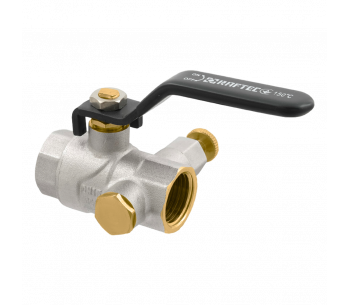

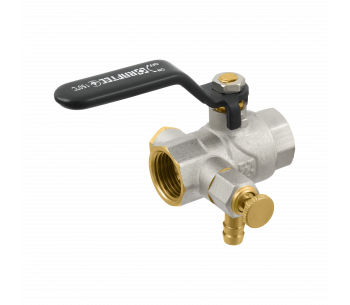

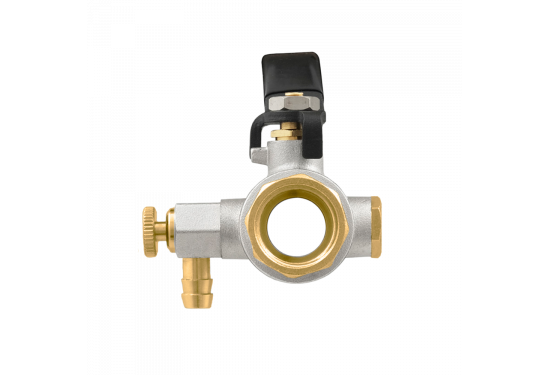

Ball valve with drainage WDRH01-03

Documentation

INSTRUCTION MANUAL: Ball valve with drainage (WDRH01, WDRH02, WDRH03)

The faucet is made of brass by hot stamping and plated with nickel. The ball valves use class "A" cylindrical pipe threads that meet the standards (ISO228/2. ISO 7/2). Valves are used on pipelines made of different materials. To seal threaded connections, it is necessary to use plumbing flax with anaerobic sealant, polyamide thread, and fume tape.

Modifications

➠

                  Array
(
    [804] => Array
        (
            [Sku] => WDRH01
            [Size] => 1/2"
            [Weight] => 236
            [Price] =>
        )

    [805] => Array
        (
            [Sku] => WDRH02
            [Size] => 3/4"
            [Weight] => 305
            [Price] =>
        )

    [806] => Array
        (
            [Sku] => WDRH03
            [Size] => 1"
            [Weight] => 483
            [Price] =>
        )

)

                  Array
(
    [804] => Array
        (
            [Sku] => WDRH01
            [Size] => 1/2"
            [Weight] => 236
            [Price] =>
        )

    [805] => Array
        (
            [Sku] => WDRH02
            [Size] => 3/4"
            [Weight] => 305
            [Price] =>
        )

    [806] => Array
        (
            [Sku] => WDRH03
            [Size] => 1"
            [Weight] => 483
            [Price] =>
        )

)

                  Array
(
    [804] => Array
        (
            [Sku] => WDRH01
            [Size] => 1/2"
            [Weight] => 236
            [Price] =>
        )

    [805] => Array
        (
            [Sku] => WDRH02
            [Size] => 3/4"
            [Weight] => 305
            [Price] =>
        )

    [806] => Array
        (
            [Sku] => WDRH03
            [Size] => 1"
            [Weight] => 483
            [Price] =>
        )

)

Sku	Size	Weight
WDRH01	1/2"	236
WDRH02	3/4"	305
WDRH03	1"	483

Description

The Raftec Black series water ball valve is used as a shut-off valve on pipelines of drinking, utility, technological, cold and hot water supply systems. The faucet is equipped with a removable fitting that allows you to connect a watering hose, and the ability to replace it allows you to connect hoses of a different diameter. The installed divider provides a compact output stream.

Specifications

➠

Warranty, Years:	7
Body material:	CW617N
Operating temperature, °C:	to 150
Average full service life, years:	25
Handle type:	Black iron handle
Thread:	F-F
Thread accuracy class:	"А" (ISO7/2)
Diameter efficiency class:	Full-opening 95%
Notch on thread:	Yes
Average service life (opening-closing), times:	25000
Average time between failures (opening-closing), times:	50000
Seat rings:	Teflon PTFE
Handle screw material:	Stainless Steel
Handle material:	Steel, Plastic
